• Country
• United States of America (USA)

• Manufacturer / Brand
• Federal Radio Corp. / Federal Telephone & Telegraph Co.; Buffalo, NY

• Year
• 1922

• Category
• Radio module pre 1926 (not a part, not a key)

• Radiomuseum.org ID
• 40303

• • alternative name: Federal Recorder || Federal Tel. & Radio || Federal T&T
  • Brand: Orthosonic / Ortho-Sonic

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

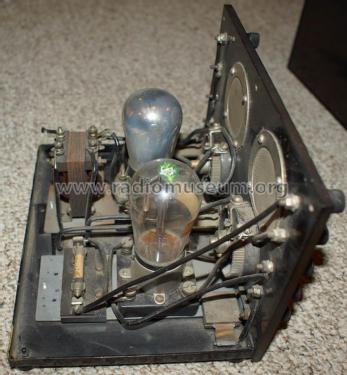

• Valves / Tubes
• UV200 UV201

• Main principle
• Detector with Vacuum Tube (Valve), no tuner; 1 AF stage(s)

• Wave bands
• - without

• Power type and voltage
• Storage and/or dry batteries / 6 & 22.5 & 45 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material

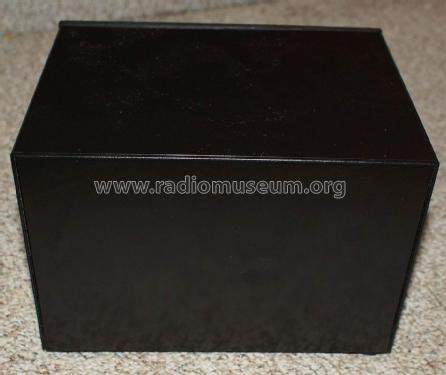

• Metal case

• from Radiomuseum.org
• Model: Detector & One-Stage A.F. Amplifier No. 8 - Federal Radio Corp. / Federal

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Notes
• Federal Telephone and Telegraph No. 8 Detector and One-Stage Audio Amplifier

• Price in first year of sale
• 52.00 $

• External source of data
• Ernst Erb

• Source of data
• Radio Collector`s Guide 1921-1932

• Mentioned in
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Literature/Schematics (2)
• Radio Digest Illustrated, 1922 Jun. 17, p. 7

• Literature/Schematics (4)
• Federal Bulletin 199-W October 1922
