Alimentatore di Placca
Fedi; Milano
- Country
- Italy
- Manufacturer / Brand
- Fedi; Milano
- Year
- 1928
- Category
- Power supply/conditioner or battery or charger
- Radiomuseum.org ID
- 335368
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 1
- Valves / Tubes
- BH
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 120; 160 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case, TUBES VISIBLE
- from Radiomuseum.org

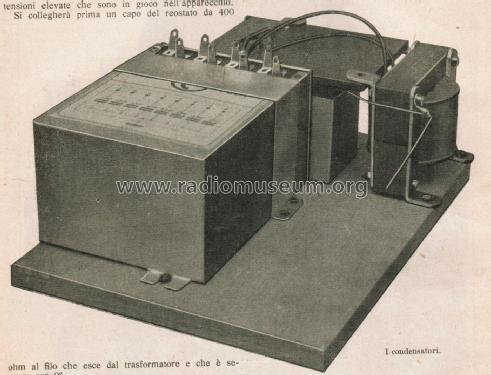

- Model: Alimentatore di Placca - Fedi; Milano
- Notes
-
Alimentatore migliorato rispetto ai precedenti, che usa la valvola a gas senza filamento BH della Raytheon. Oltre alla tensione continua di 180 V fornisce una tensione regolabile di 90 V, un'altra tensione regolabile di basso valore da applicare alle griglie di bassa frequenza ed una ulteriore tensione regolabile di 45 V, tutte in Corrente Continua.
La tensione di ingresso è altresì regolabile tramite un reostato da 400 Ω.
- Mentioned in
- La Radio per Tutti, febbraio 1928
- Author
- Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
