Sampo-V-39 S50A
Use red slider bar for more.

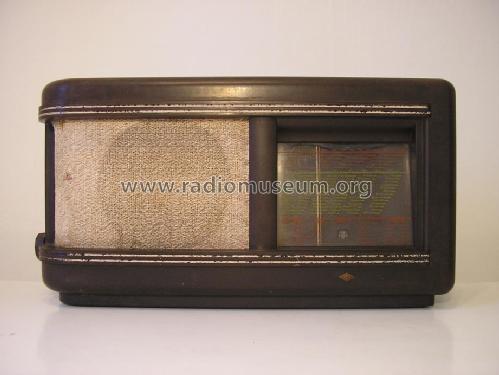

Fenno, Helsinki -: Sampo-V-39 S50A [Radio] ID = 1605656 922x692
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1938/1939 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 4: EK2 EF9 EBL1 AZ1 |
|---|
| Main principle | Superheterodyne (common) |
|---|---|
| Wave bands | Broadcast, Long Wave and Short Wave. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt |

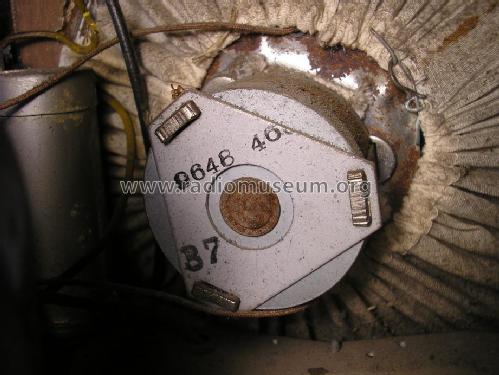

| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 cm = 7.1 inch |
| Power out | |
| from Radiomuseum.org | Model: Sampo-V-39 S50A - Fenno, Helsinki - see also |
| Material | Bakelite case |
| Shape | Tablemodel, low profile (big size). |
| Dimensions (WHD) | 490 x 265 x 200 mm / 19.3 x 10.4 x 7.9 inch |
| Notes | Dial lamp: 8045D-00 |
Model page created by Timo Rantasaari. See "Data change" for further contributors.
