Sointu F243TV

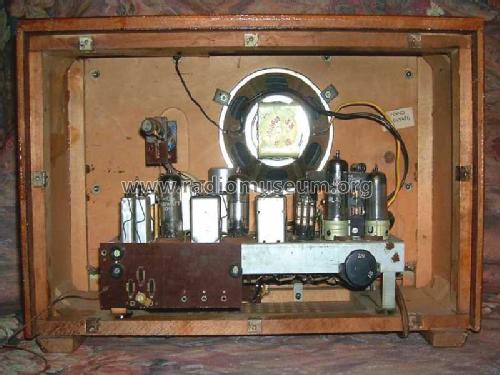

Sointu F243TV; Fenno, Helsinki - (ID = 195621) Radio Sointu F243TV; Fenno, Helsinki - (ID = 195622) Radio

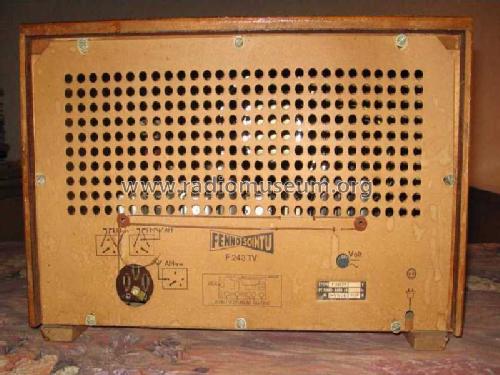

Sointu F243TV; Fenno, Helsinki - (ID = 195623) Radio Sointu F243TV; Fenno, Helsinki - (ID = 194082) Radio
Use red slider bar for more.
Sointu F243TV; Fenno, Helsinki - (ID = 195621) Radio
Fenno, Helsinki -: Sointu F243TV [Radio] ID = 195621 800x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model Sointu F243TV, Fenno, Helsinki - see also Philips

Country:  Finland
Manufacturer / Brand:  Fenno, Helsinki - see also Philips
Year: 1954 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: UC92 UCH81 UF85 UABC80 UL41 UY42
Main principle Superheterodyne (common); ZF/IF 468 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage AC/DC-set / 110; 127; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Sointu F243TV - Fenno, Helsinki - see also
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 410 x 264 x 169 mm / 16.1 x 10.4 x 6.7 inch
Net weight (2.2 lb = 1 kg) 4.2 kg / 9 lb 4 oz (9.251 lb)
Price in first year of sale 21'000.00 FIM
Source of data -- Collector info (Sammler)

Model page created by Jari Aalto. See "Data change" for further contributors.
