- Country
- Great Britain (UK)
- Manufacturer / Brand
- Ferguson (Brand), Ferguson Radio Corporation Ltd., British Radio Corporation Ltd.; London
- Year
- 1962 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 167577
-
- Brand: TRF
ebay Item Number: 171044170742
ebay Item Number: 171044170742
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 470/10700 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s) 8 FM circuit(s)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 200-250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 2 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

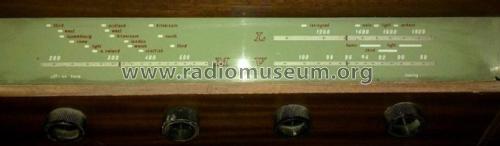

- Model: Radiogramophone 652RG - Ferguson Brand, Ferguson Radio
- Shape
- Console, Highboy (legs > 50 %).
- Dimensions (WHD)
- 33.75 x 17.5 x 25.5 inch / 857 x 445 x 648 mm
- Notes
-
Radiogram with similar chassis as model 653RG.
Fitted with a BSR UA14 4 speed autochanger with a BSR TC8M mono cartridge.
8 x 5 inch elliptical loudspeaker.
- Source of data

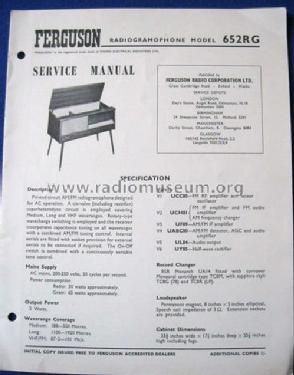

- -- Schematic
- Literature/Schematics (1)
- Radio And Television Servicing books (R&TVS)
- Author
- Model page created by Keith Staines. See "Data change" for further contributors.
