- Country
- Great Britain (UK)
- Manufacturer / Brand
- Ferguson (Brand), Ferguson Radio Corporation Ltd., British Radio Corporation Ltd.; London
- Year
- 1955
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 289788
-
- Brand: TRF
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Main principle
- Superheterodyne (common); ZF/IF 10700 kHz
- Wave bands
- FM Broadcast Band Only
- Power type and voltage
- Alternating Current supply (AC) / 200-250 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: VHF/FM Adaptor FMA/1 - Ferguson Brand, Ferguson Radio
- Shape
- Book-shelf unit.
- Notes
-
A mono FM tuner for use with existing radio receivers and audio amplifiers to receive VHF broadcasts (87-100 MHz). Three valves, two crystal diodes. Released September 1955 price £12 2s 7d plus purchase tax.
- Mentioned in

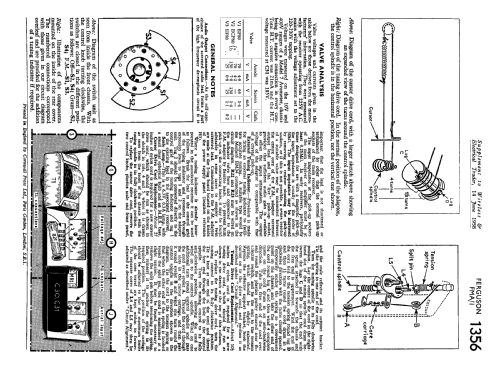

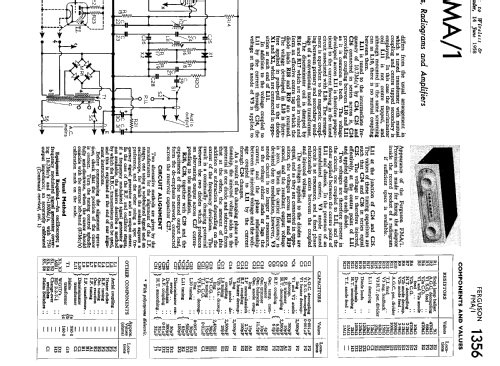

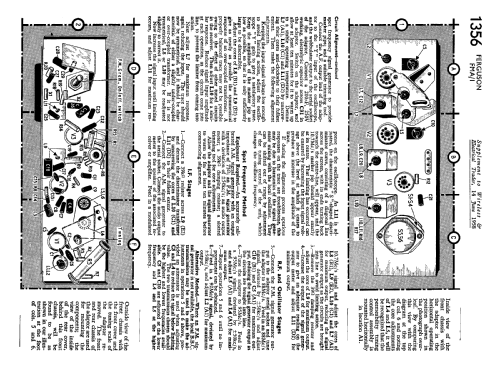

- Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (1356 dated 14 June 1958)
- Author
- Model page created by Howard Craven. See "Data change" for further contributors.
