Cascada B6401

Cascada B6401; Fernmeldewerk (ID = 317145) Speaker-P
Cascada B6401; Fernmeldewerk (ID = 238122) Speaker-P Cascada B6401; Fernmeldewerk (ID = 2053124) Speaker-P
Cascada B6401; Fernmeldewerk (ID = 2053125) Speaker-P
Use red slider bar for more.
Cascada B6401; Fernmeldewerk (ID = 238122) Speaker-P
Fernmeldewerk: Cascada B6401 [Speaker-P] ID = 238122 400x534

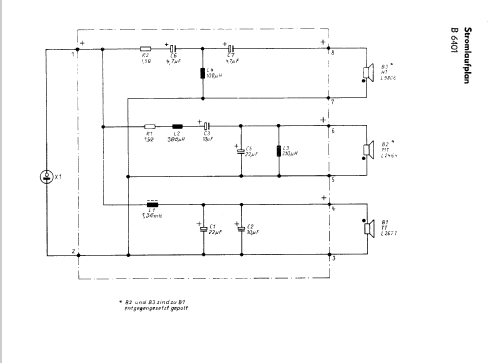

Select picture or schematic to display from thumbnails on the right and click for download.
For model Cascada B6401, Fernmeldewerk Leipzig, VEB; Leipzig:
Das Bild wurde freundlicherweise von Danilo Wolff zur Verfügung gestellt.

Country:  Germany
Manufacturer / Brand:  Fernmeldewerk Leipzig, VEB; Leipzig
alternative name

Nachrichtenelektronik Leipzig, VEB, RFT (Ostd.)
Year: 1988 Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: Cascada B6401 - Fernmeldewerk Leipzig, VEB;
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 230 x 635 x 285 mm / 9.1 x 25 x 11.2 inch
Notes Bassreflexbox 25 l, Nennbelastbarkeit 50 W, Höchstbelastbarkeit 80 W, bestückt mit L2621, 40 W, für Tiefton; Mitteltöner L2464, Kalotte, L9806; Übertragungsbereich 25...22000 Hz.
Net weight (2.2 lb = 1 kg) 12 kg / 26 lb 6.9 oz (26.432 lb)
Price in first year of sale 495.00 DM
Source of data -- Collector info (Sammler)

Model page created by Wolfgang Lill. See "Data change" for further contributors.
