For model DM2112, Fernmeldewerk Leipzig, VEB; Leipzig:
2 Varianten der Aufbewahrungsboxen - Plast und Schaumpolystyrol

Country:  Germany
Manufacturer / Brand:  Fernmeldewerk Leipzig, VEB; Leipzig
alternative name

Nachrichtenelektronik Leipzig, VEB, RFT (Ostd.)
Year: 1974 ? Category: Microphone or Pick-up element
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: DM2112 - Fernmeldewerk Leipzig, VEB;
Material Modern plastics (no Bakelite or Catalin)
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 34 x 165 x 34 mm / 1.3 x 6.5 x 1.3 inch

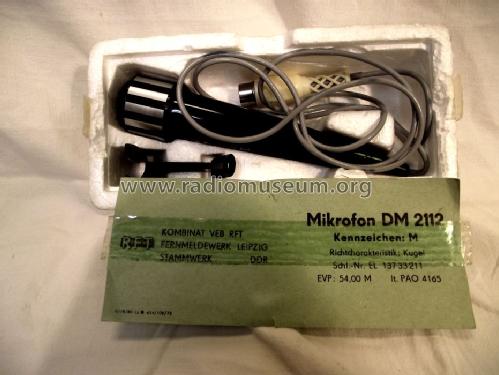

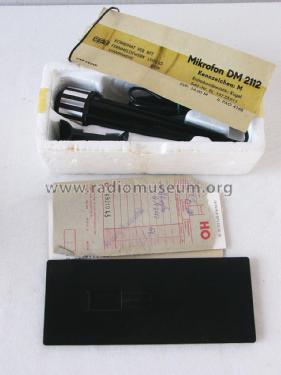

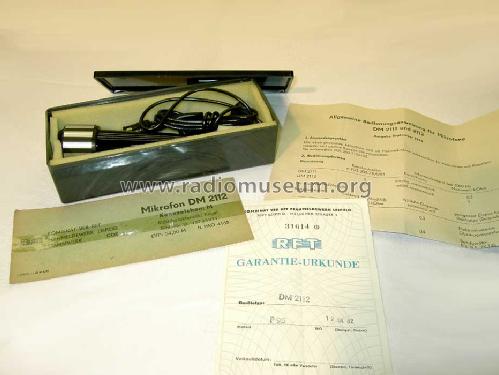

Notes Dynamisches Handmikrophon, kugelförmige Richtcharakteristik, 50 - 15.000 Hz, DIN Stecker. Zusatzangabe: Kennzeichen M = mittelohmig 1 kOhm Impedanz. (Siehe Anlagen beim Grundmodell DM2110). Passender Tischständer beigepackt. Es gibt 2 Varianten der Aufbewahrungsboxen - Plast und Schaumpolystyrol (siehe Bilder)
Net weight (2.2 lb = 1 kg) 0.130 kg / 0 lb 4.6 oz (0.286 lb)
Price in first year of sale 54.00 Mark
Collectors' prices
Source of data -- Collector info (Sammler)
Mentioned in -- Original prospect or advert
