DM2412N

DM2412N; Fernmeldewerk (ID = 245874) Microphone/PU DM2412N; Fernmeldewerk (ID = 344763) Microphone/PU
DM2412N; Fernmeldewerk (ID = 1982196) Microphone/PU DM2412N; Fernmeldewerk (ID = 669475) Microphone/PU
DM2412N; Fernmeldewerk (ID = 669476) Microphone/PU DM2412N; Fernmeldewerk (ID = 669477) Microphone/PU
DM2412N; Fernmeldewerk (ID = 669478) Microphone/PU DM2412N; Fernmeldewerk (ID = 669479) Microphone/PU
DM2412N; Fernmeldewerk (ID = 1982188) Microphone/PU DM2412N; Fernmeldewerk (ID = 1982192) Microphone/PU
Use red slider bar for more.
DM2412N; Fernmeldewerk (ID = 245874) Microphone/PU
Fernmeldewerk: DM2412N [Microphone/PU] ID = 245874 933x472
Select picture or schematic to display from thumbnails on the right and click for download.
For model DM2412N, Fernmeldewerk Leipzig, VEB; Leipzig:
Originalbedienungsanleitung, Auszug

Country:  Germany
Manufacturer / Brand:  Fernmeldewerk Leipzig, VEB; Leipzig
alternative name

Nachrichtenelektronik Leipzig, VEB, RFT (Ostd.)
Year: 1976 ?? Category: Microphone or Pick-up element
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: DM2412N - Fernmeldewerk Leipzig, VEB;
Material Modern plastics (no Bakelite or Catalin)
Dimensions (WHD) 42 x 175 x 42 mm / 1.7 x 6.9 x 1.7 inch

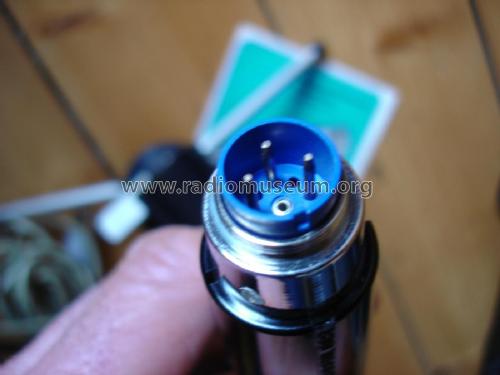

Notes dynamisches Hand-Richtmikrofon mit Kardioid-Richtcharakteristik, Tauchspulenmikrofon, 50 Hz ... 15 kHz. Niederohmig (1 kOhm/0,2 mV), ohne Schalter, ohne Kabel, für niederohmioge Eingänge (z.B elektroakustische Übertragungsanlagen) , Stiftbelegung: 1=Tonspannung, 2=Masse, 3=Tonspannung
Net weight (2.2 lb = 1 kg) 0.125 kg / 0 lb 4.4 oz (0.275 lb)
Collectors' prices
Mentioned in -- Original prospect or advert

Model page created by Wolfgang Lill. See "Data change" for further contributors.
