Dynamische Mikrofonkapsel DK323

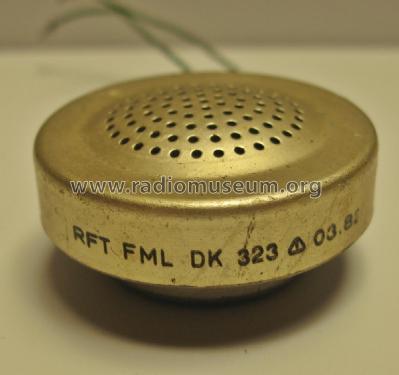

Dynamische Mikrofonkapsel DK323; Fernmeldewerk (ID = 1786919) Microphone/PU Dynamische Mikrofonkapsel DK323; Fernmeldewerk (ID = 1786920) Microphone/PU
Dynamische Mikrofonkapsel DK323; Fernmeldewerk (ID = 1786922) Microphone/PU
Use red slider bar for more.
Dynamische Mikrofonkapsel DK323; Fernmeldewerk (ID = 1786919) Microphone/PU
Fernmeldewerk: Dynamische Mikrofonkapsel DK323 [Microphone/PU] ID = 1786919 1400x945
Select picture or schematic to display from thumbnails on the right and click for download.
For model Dynamische Mikrofonkapsel DK323, Fernmeldewerk Leipzig, VEB; Leipzig

Country:  Germany
Manufacturer / Brand:  Fernmeldewerk Leipzig, VEB; Leipzig
alternative name

Nachrichtenelektronik Leipzig, VEB, RFT (Ostd.)
Year: 1975 ?? Category: Microphone or Pick-up element
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Dynamische Mikrofonkapsel DK323 - Fernmeldewerk Leipzig, VEB;
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 36 x 36 x 18 mm / 1.4 x 1.4 x 0.7 inch
Notes

Dynamische Mikrofonkapsel mit Litzenanschlüssen.

Net weight (2.2 lb = 1 kg) 0.045 kg / 0 lb 1.6 oz (0.099 lb)

Model page created by Michael Mischke. See "Data change" for further contributors.
