L2203

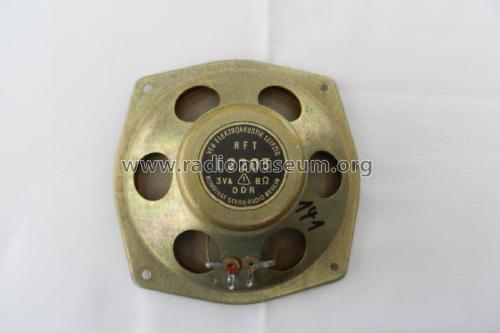

L2203; Fernmeldewerk (ID = 2367270) Speaker-P L2203; Fernmeldewerk (ID = 2367268) Speaker-P
L2203; Fernmeldewerk (ID = 2367269) Speaker-P
Use red slider bar for more.
L2203; Fernmeldewerk (ID = 2367270) Speaker-P
Fernmeldewerk: L2203 [Speaker-P] ID = 2367270 1007x875
Select picture or schematic to display from thumbnails on the right and click for download.
For model L2203, Fernmeldewerk Leipzig, VEB; Leipzig

Country:  Germany
Manufacturer / Brand:  Fernmeldewerk Leipzig, VEB; Leipzig
alternative name

Nachrichtenelektronik Leipzig, VEB, RFT (Ostd.)
Year: 1987 ?? Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
Power out
from Radiomuseum.org Model: L2203 - Fernmeldewerk Leipzig, VEB;
Material Metal case
Shape Chassis only or for «building in»
Notes Breitbandlautsprecherchassis mit einer Nennbelastbarkeit von 3W an 8Ohm bei 100...13000Hz.
Literature/Schematics (1) Bauelementeinformationen in RFE6/1987

Model page created by Michael Seiffert. See "Data change" for further contributors.



All listed radios etc. from Fernmeldewerk Leipzig, VEB; Leipzig
Here you find 121 models, 83 with images and 18 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
