• Country
• Germany

• Manufacturer / Brand
• Fernmeldewerk Leipzig, VEB; Leipzig

• Year
• 1973 ?

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 167459

• • alternative name: Nachrichtenelektronik Leipzig, VEB, RFT (Ostd.)

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch

• Material
• Metal case

• from Radiomuseum.org

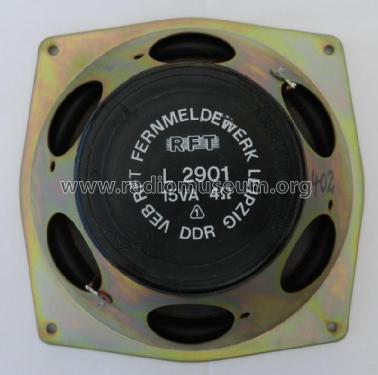

• Model: Lautsprecher-Chassis L2901 - Fernmeldewerk Leipzig, VEB;

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 210 x 210 x 92 mm / 8.3 x 8.3 x 3.6 inch

• Notes

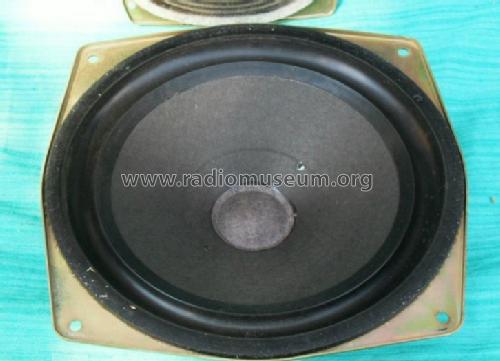

• Tiefton-Mitten-Lautsprecher-Chassis mit Stahlblechkorb, Gummischarnier, Nawimembran, 15 W an 4 Ω, Frequenzbereich 45...2200 Hz (in geschlossenem Gehäuse, 20 l).
  Fertigungsbeginn im Elektroakustik Leipzig, das am 1.1.1980 in das Fernmeldewerk Leipzig integriert wurde. Auch Fertigung im "VEB Eleveska Karl-Marx-Stadt".

• Literature/Schematics (1)
• radio fernsehen elektronik 1973; H.13

• Author
• Model page created by Frithjof Grassmann. See "Data change" for further contributors.
