Lautsprecher-Chassis L3404

Lautsprecher-Chassis L3404; Fernmeldewerk (ID = 702353) Speaker-P Lautsprecher-Chassis L3404; Fernmeldewerk (ID = 702354) Speaker-P

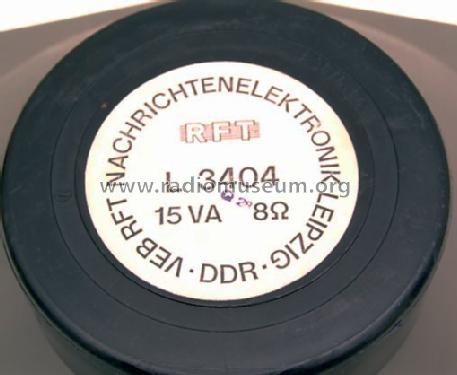

Lautsprecher-Chassis L3404; Fernmeldewerk (ID = 746549) Speaker-P
Use red slider bar for more.
Lautsprecher-Chassis L3404; Fernmeldewerk (ID = 702353) Speaker-P
Fernmeldewerk: Lautsprecher-Chassis L3404 [Speaker-P] ID = 702353 510x433
Select picture or schematic to display from thumbnails on the right and click for download.
For model Lautsprecher-Chassis L3404, Fernmeldewerk Leipzig, VEB; Leipzig:
Mit freundlicher Genehmigung von Herrn Thomas Fichtner!

Country:  Germany
Manufacturer / Brand:  Fernmeldewerk Leipzig, VEB; Leipzig
alternative name

Nachrichtenelektronik Leipzig, VEB, RFT (Ostd.)
Year: 1980 ?? Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 30 cm = 11.8 inch
Power out
from Radiomuseum.org Model: Lautsprecher-Chassis L3404 - Fernmeldewerk Leipzig, VEB;
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 300 x 300 x 0 mm / 11.8 x 11.8 x 0 inch
Notes Mitten-Hochton-Lautsprecher 15 VA an 8 Ohm, geschlossener Korb, vorwiegend in Bühnenlautsprecherboxen eingesetzt.

Model page created by Frithjof Grassmann. See "Data change" for further contributors.
