Lautsprecherchassis LP557-8

Lautsprecherchassis LP557-8; Fernmeldewerk (ID = 2368991) Speaker-P Lautsprecherchassis LP557-8; Fernmeldewerk (ID = 2368999) Speaker-P

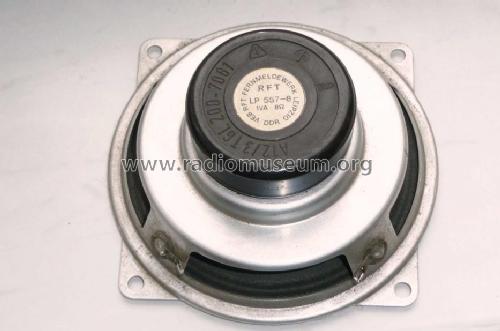

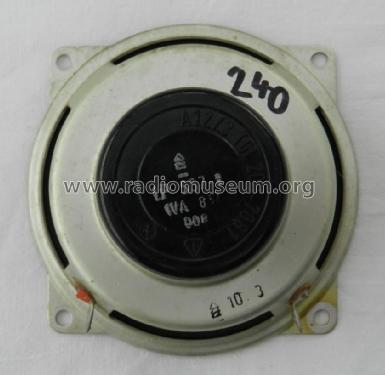

Lautsprecherchassis LP557-8; Fernmeldewerk (ID = 2368987) Speaker-P Lautsprecherchassis LP557-8; Fernmeldewerk (ID = 1033268) Speaker-P
Lautsprecherchassis LP557-8; Fernmeldewerk (ID = 1033269) Speaker-P
Use red slider bar for more.
Lautsprecherchassis LP557-8; Fernmeldewerk (ID = 2368991) Speaker-P
Fernmeldewerk: Lautsprecherchassis LP557-8 [Speaker-P] ID = 2368991 1079x887
Select picture or schematic to display from thumbnails on the right and click for download.
For model Lautsprecherchassis LP557-8, Fernmeldewerk Leipzig, VEB; Leipzig

Country:  Germany
Manufacturer / Brand:  Fernmeldewerk Leipzig, VEB; Leipzig
alternative name

Nachrichtenelektronik Leipzig, VEB, RFT (Ostd.)
Year: 1978 ?? Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out
from Radiomuseum.org Model: Lautsprecherchassis LP557-8 - Fernmeldewerk Leipzig, VEB;
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 100 x 100 x 45 mm / 3.9 x 3.9 x 1.8 inch
Notes Breitbandlautsprecher. Impedanz: 8 Ohm. Nennbelastbarkeit:1 VA. Korb: Metall offen. Magnetsystem: Dauermagnet Typ A12/3(TGL200-7081).
Net weight (2.2 lb = 1 kg) 0.175 kg / 0 lb 6.2 oz (0.385 lb)

Model page created by Klaus-Hartwig Müller. See "Data change" for further contributors.
