Lautsprecherchassis L1601

Lautsprecherchassis L1601; Fernmeldewerk (ID = 2024408) Speaker-P Lautsprecherchassis L1601; Fernmeldewerk (ID = 2024406) Speaker-P
Lautsprecherchassis L1601; Fernmeldewerk (ID = 2024409) Speaker-P Lautsprecherchassis L1601; Fernmeldewerk (ID = 2115789) Speaker-P
Lautsprecherchassis L1601; Fernmeldewerk (ID = 2115790) Speaker-P
Use red slider bar for more.

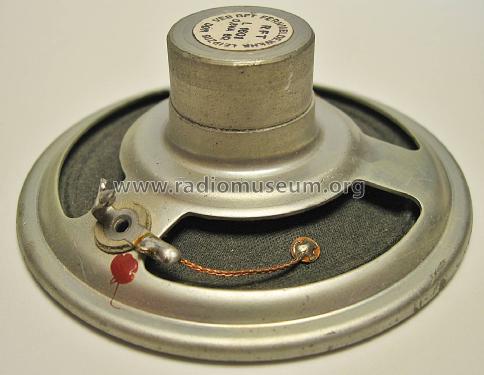

Lautsprecherchassis L1601; Fernmeldewerk (ID = 2024408) Speaker-P
Fernmeldewerk: Lautsprecherchassis L1601 [Speaker-P] ID = 2024408 1400x1084
Select picture or schematic to display from thumbnails on the right and click for download.
For model Lautsprecherchassis L1601, Fernmeldewerk Leipzig, VEB; Leipzig

Country:  Germany
Manufacturer / Brand:  Fernmeldewerk Leipzig, VEB; Leipzig
alternative name

Nachrichtenelektronik Leipzig, VEB, RFT (Ostd.)
Year: 1987 ?? Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
Power out 0.8 W (unknown quality)
from Radiomuseum.org Model: Lautsprecherchassis L1601 - Fernmeldewerk Leipzig, VEB;
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 80 x 80 x 30 mm / 3.1 x 3.1 x 1.2 inch
Notes

Kleines Breitbandlautsprecherchassis mit einer Nennbelastbarkeit von 0,8 W an 6 Ω bei 190...6000 Hz. Korb: offen, Stahlblech mit Rand für Klemmbefestigung.

Net weight (2.2 lb = 1 kg) 0.067 kg / 0 lb 2.4 oz (0.148 lb)
Literature/Schematics (1) Bauelementeinformationen in RFE6/1987

Model page created by Michael Seiffert. See "Data change" for further contributors.
