• Country
• Germany

• Manufacturer / Brand
• Fernseh-Radio Berlin (FERA), PGH; (Ostd)

• Year
• 1971/1972

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 77532

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 30

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 30 W (50 W max.)

• Material
• Wooden case

• from Radiomuseum.org

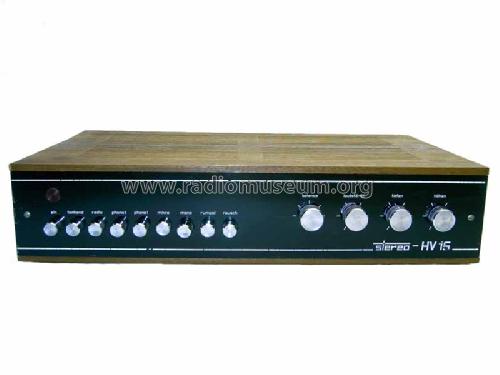

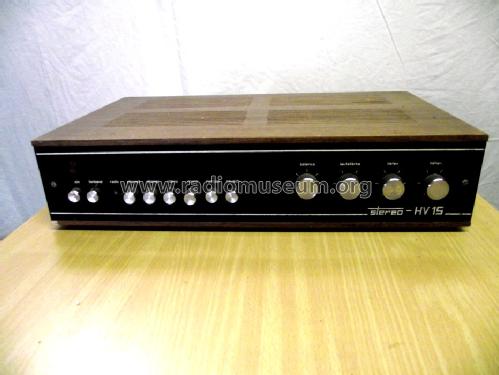

• Model: Stereo-Verstärker HV15 - Fernseh-Radio Berlin FERA, PGH

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 430 x 95 x 250 mm / 16.9 x 3.7 x 9.8 inch

• Notes
• NF-Stereo-Verstärker 2× 15 VA Sinus, 4 Ohm, 25-16000 Hz ±1 db, Klirrfaktor <1 %. 5 Eingänge mit Drucktasten und DIN-Buchsen.
  Äußerlich zum Tuner HV15 passend.

• Net weight (2.2 lb = 1 kg)
• 5.6 kg / 12 lb 5.4 oz (12.335 lb)

• Price in first year of sale
• 775.00 DM

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Mentioned in
• -- Original prospect or advert

• Literature/Schematics (1)
• Die Geschichte der Rundfunkindustrie der DDR Band 2 1968 - 1990

• Author
• Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
