89 6 volt.
Use red slider bar for more.

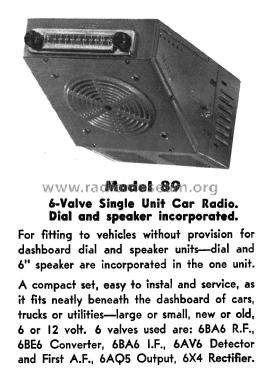

Ferris Bros. Pty Ltd: 89 [Car Radio] ID = 1977850 1024x1457
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1952 | Category: Car Radio, perhaps also + sound player/recorder | ||||
| Valves / Tubes | 6: 6BA6 6BE6 6BA6 6AV6 6AQ5 6X5GT |
|---|
| Main principle | Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s) |
|---|---|
| Tuned circuits | 7 AM circuit(s) |
| Wave bands | Broadcast only (MW). |
| Details | |
| Power type and voltage | Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt |
| Loudspeaker | - This model requires external speaker(s). |
| Power out | |
| from Radiomuseum.org | Model: 89 [6 volt.] - Ferris Bros. Pty Ltd.; Sydney |
| Material | Metal case |
| Notes | This model uses a non-synchronous vibrator power supply. |
| Circuit diagram reference | Australian Official Radio Service Manual Vol. XI |
