C21 Console

C21; Ferris Bros. Pty Ltd (ID = 1646710) Television C21; Ferris Bros. Pty Ltd (ID = 1646711) Television

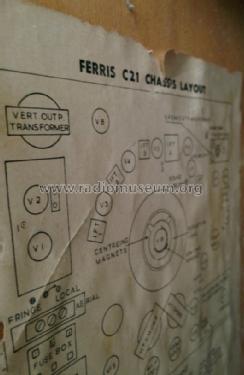

C21; Ferris Bros. Pty Ltd (ID = 1646712) Television C21; Ferris Bros. Pty Ltd (ID = 1646713) Television
Use red slider bar for more.
C21; Ferris Bros. Pty Ltd (ID = 1646710) Television
Ferris Bros. Pty Ltd: C21 [Television] ID = 1646710 541x691
Select picture or schematic to display from thumbnails on the right and click for download.
For model C21 Console, Ferris Bros. Pty Ltd.; Sydney:
Ferris model C21 console. Photo used with permission from owner.

Country:  Australia
Manufacturer / Brand:  Ferris Bros. Pty Ltd.; Sydney
Year: 1958 ? Category: Television Receiver (TV) or Monitor
Valves / Tubes 18: 6CW7 6BL8 6CB6 6CB6 6CB6 6BL8 6CB6 6BL8 6AV6 6AQ5 6CM7 or 12BH7 12AU7 6DQ6 6AX4GT 1B3GT 6N3 6N3 21ALP4A
Semiconductors (the count is only for transistors) OA70 OA79 OA79
Main principle Superhet with RF-stage; ZF/IF 36000/30500 kHz; 2 AF stage(s)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 190-210; 215-235; 230-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: C21 [Console] - Ferris Bros. Pty Ltd.; Sydney
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Notes

This is a 21 inch television that tunes the 10 Australian VHF channels standard at the time.

The 6CM7 was replaced by the 12BH7 in later production due to reliability problems with the former.  It was recommended that the valve type be changed if the 6CM7 needed frequent replacement.  This required wiring and component value changes.

Literature/Schematics (1) J.R.Publications "Television Service Handbook" Page F2.

Model page created by Stuart Irwin. See "Data change" for further contributors.
