Gemini High Fidelity 8 Transistor 207

Gemini High Fidelity 8 Transistor 207; Ferris Bros. Pty Ltd (ID = 2181907) Radio
Gemini High Fidelity 8 Transistor 207; Ferris Bros. Pty Ltd (ID = 1048015) Radio Gemini High Fidelity 8 Transistor 207; Ferris Bros. Pty Ltd (ID = 1048016) Radio
Gemini High Fidelity 8 Transistor 207; Ferris Bros. Pty Ltd (ID = 1048018) Radio
Use red slider bar for more.

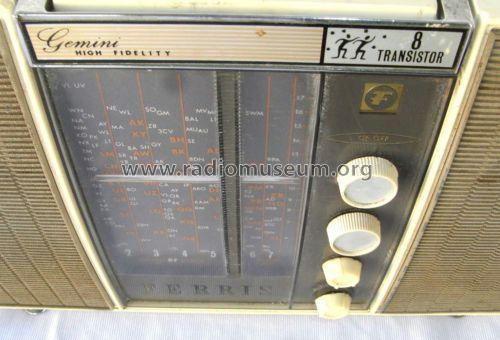

Gemini High Fidelity 8 Transistor 207; Ferris Bros. Pty Ltd (ID = 1048015) Radio
Ferris Bros. Pty Ltd: Gemini High Fidelity 8 Transistor 207 [Radio] ID = 1048015 464x264
Select picture or schematic to display from thumbnails on the right and click for download.
For model Gemini High Fidelity 8 Transistor 207, Ferris Bros. Pty Ltd.; Sydney:
Ebay AUS treat_n_treasures 250866739469

Country:  Australia
Manufacturer / Brand:  Ferris Bros. Pty Ltd.; Sydney
Year: 1964 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8: AF115N or. 2SA246 or. 2N2083 AF115N or. 2SA246 or. 2N2083 AF117N or. 2N1638 or. 2N373 AF117N or. 2N1638 or. 2N373 AC172 or. 2N649 AC125 or. 2N406 AC128 or. AS128 AC127 or. 2N649 OA90 or. 1N60A OA90 or. 1N60A unknown_diode
Main principle Superhet with RF-stage; ZF/IF 455 kHz; 3 AF stage(s)
Tuned circuits 8 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Line / Batteries (any type) / 240V AC or battery 9 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Gemini High Fidelity 8 Transistor 207 - Ferris Bros. Pty Ltd.; Sydney
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 365 x 0 x 0 mm / 14.4 x 0 x 0 inch
Notes

Ferris Gemini High Fidelity 8 Transistor;

Colours available in Antique White/Tan, Jade & Beige.

Net weight (2.2 lb = 1 kg) 3 kg / 6 lb 9.7 oz (6.608 lb)
Price in first year of sale 40.95 AUS £
Literature/Schematics (1) J.R. Publications Transistor Radio Service Handbook (Group C3, 1966, Page F11.)

Model page created by a member from A. See "Data change" for further contributors.



All listed radios etc. from Ferris Bros. Pty Ltd.; Sydney
Here you find 125 models, 64 with images and 48 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
