11 Transistor Volumatic M189 (189)

11 Transistor Volumatic M189 ; Ferris Bros. Pty Ltd (ID = 2182277) Car Radio

11 Transistor Volumatic M189 ; Ferris Bros. Pty Ltd (ID = 2182278) Car Radio
11 Transistor Volumatic M189 ; Ferris Bros. Pty Ltd (ID = 1047205) Car Radio
Use red slider bar for more.
11 Transistor Volumatic M189 ; Ferris Bros. Pty Ltd (ID = 1047205) Car Radio

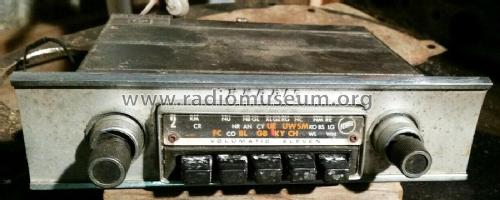

Ferris Bros. Pty Ltd: 11 Transistor Volumatic M189 [Car Radio] ID = 1047205 226x113
Select picture or schematic to display from thumbnails on the right and click for download.
For model 11 Transistor Volumatic M189 (189), Ferris Bros. Pty Ltd.; Sydney:
- - Manufacturers Literature

Country:  Australia
Manufacturer / Brand:  Ferris Bros. Pty Ltd.; Sydney
Year: 1968 Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) 11: 2N1637 2N1637 2N1639 or. AF116 2N1638 or. AF117 2N1638 or. AF117 2N406 or. AC125 2N406 or. AC125 AY1113 AY1113 2N301 or. AT1138 2N301 or. AT1138 OA90 or. 1N60A
Main principle Superhet with RF-stage; ZF/IF 455 kHz; 3 AF stage(s)
Tuned circuits 8 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 8 W (10 W max.)
from Radiomuseum.org Model: 11 Transistor Volumatic M189 - Ferris Bros. Pty Ltd.; Sydney
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 7 x 2 x 5.5 inch / 178 x 51 x 140 mm
Notes

Ferris Volumatic 189;
Five push-button presets.

The Model 182 is the manual tuned version of this radio.

These radios feature two RF amplifier stages before the Converter and then 2 IF amplifier stages. There are 5 transistors in the AF stage.

This model could be used in either positive or negative chassis vehicles via a polarity change-over switch.

A 6 Volt version, still labled "Volumatic" is known, the transistor component is identical with the above list.

Price is for basic unit only.  Price for custom dash fitting & fixtures is $115.00.

Net weight (2.2 lb = 1 kg) 5 lb (5 lb 0 oz) / 2.270 kg
Price in first year of sale 95.20 AUS $
Mentioned in J.R. Publications Car Radio Service Handbook (Group G6, September 1969, Page F11.)
