AM-FM Pocket Radio 168B

AM-FM Pocket Radio 168B; First Austria, (ID = 2028908) Radio AM-FM Pocket Radio 168B; First Austria, (ID = 2028909) Radio
AM-FM Pocket Radio 168B; First Austria, (ID = 2028910) Radio AM-FM Pocket Radio 168B; First Austria, (ID = 2028911) Radio
AM-FM Pocket Radio 168B; First Austria, (ID = 2028912) Radio AM-FM Pocket Radio 168B; First Austria, (ID = 2028913) Radio
AM-FM Pocket Radio 168B; First Austria, (ID = 2028914) Radio AM-FM Pocket Radio 168B; First Austria, (ID = 2028915) Radio
AM-FM Pocket Radio 168B; First Austria, (ID = 2028916) Radio AM-FM Pocket Radio 168B; First Austria, (ID = 2028917) Radio
Use red slider bar for more.
AM-FM Pocket Radio 168B; First Austria, (ID = 2028908) Radio
First Austria,: AM-FM Pocket Radio 168B [Radio] ID = 2028908 1163x1411
Select picture or schematic to display from thumbnails on the right and click for download.
For model AM-FM Pocket Radio 168B, First Austria, Timetron; Wien

Country:  Austria
Manufacturer / Brand:  First Austria, Timetron; Wien
Year: 1994 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 2: unknown_tr TDA1083
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Dry Batteries / AA: 3 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch
Power out 0.5 W (unknown quality)
from Radiomuseum.org Model: AM-FM Pocket Radio 168B - First Austria, Timetron; Wien
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 75 x 130 x 40 mm / 3 x 5.1 x 1.6 inch
Notes

Pocket receiver sporting a belt clip. Bands: AM 540-1610KHz and FM 88-108MHz.

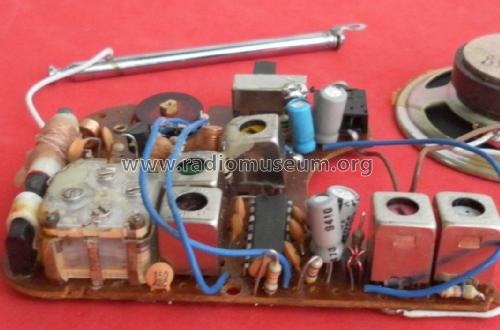

This pocket receiver is based around a TDA1083 AM/FM/AudioAmp integrated circuit and uses two additional RF Si transistors as the FM front-end.







Net weight (2.2 lb = 1 kg) 0.190 kg / 0 lb 6.7 oz (0.419 lb)

Model page created by Jose Mesquita. See "Data change" for further contributors.
