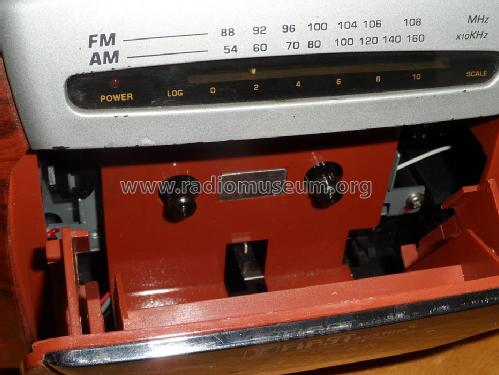

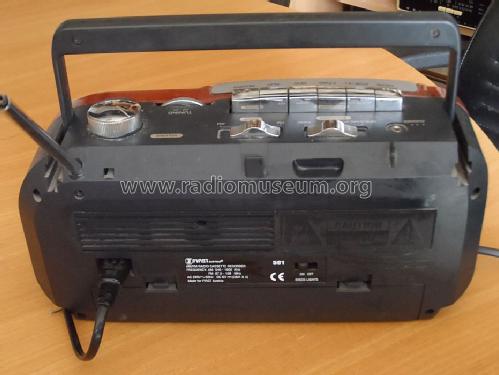

AM-FM Radio Cassette Recorder 581

AM-FM Radio Cassette Recorder 581; First Austria, (ID = 1668759) Radio AM-FM Radio Cassette Recorder 581; First Austria, (ID = 1668760) Radio
AM-FM Radio Cassette Recorder 581; First Austria, (ID = 1668761) Radio AM-FM Radio Cassette Recorder 581; First Austria, (ID = 1668763) Radio
AM-FM Radio Cassette Recorder 581; First Austria, (ID = 1668764) Radio AM-FM Radio Cassette Recorder 581; First Austria, (ID = 1668765) Radio
Use red slider bar for more.
AM-FM Radio Cassette Recorder 581; First Austria, (ID = 1668759) Radio
First Austria,: AM-FM Radio Cassette Recorder 581 [Radio] ID = 1668759 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model AM-FM Radio Cassette Recorder 581, First Austria, Timetron; Wien

Country:  Austria
Manufacturer / Brand:  First Austria, Timetron; Wien
Year: 1992 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / 220 / UM1: 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
Power out
from Radiomuseum.org Model: AM-FM Radio Cassette Recorder 581 - First Austria, Timetron; Wien
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 280 x 145 x 90 mm / 11 x 5.7 x 3.5 inch
Notes

Mono Gerät, Kassette , eingebautes Mikrofon, Auto Stop System, Disco lights.

Net weight (2.2 lb = 1 kg) 1.232 kg / 2 lb 11.4 oz (2.714 lb)

Model page created by Wolfgang Lill. See "Data change" for further contributors.



All listed radios etc. from First Austria, Timetron; Wien
Here you find 9 models, 9 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
