FM Multiplex Receiver 400

Fisher Radio; New York (NY)

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Fisher Radio; New York (NY)

Year
1966–1968

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
26708

Schematics

FM Multiplex Receiver 400; Fisher Radio; New (ID = 52915) Radio — Fisher Radio; New FM Multiplex Receiver 400 (3)

FM Multiplex Receiver 400; Fisher Radio; New (ID = 52917) Radio — Fisher Radio; New FM Multiplex Receiver 400 (3)

FM Multiplex Receiver 400; Fisher Radio; New (ID = 52918) Radio — Fisher Radio; New FM Multiplex Receiver 400 (3)

FM Multiplex Receiver 400; Fisher Radio; New (ID = 52942) Radio — Fisher Radio; New FM Multiplex Receiver 400 (3)

FM Multiplex Receiver 400; Fisher Radio; New (ID = 52943) Radio — Fisher Radio; New FM Multiplex Receiver 400 (3)

FM Multiplex Receiver 400; Fisher Radio; New (ID = 52944) Radio — Fisher Radio; New FM Multiplex Receiver 400 (3)

FM Multiplex Receiver 400; Fisher Radio; New (ID = 2624110) Radio — Fisher Radio; New FM Multiplex Receiver 400 (1)

FM Multiplex Receiver 400; Fisher Radio; New (ID = 2624112) Radio — Fisher Radio; New FM Multiplex Receiver 400 (1)

FM Multiplex Receiver 400; Fisher Radio; New (ID = 2624109) Radio — Fisher Radio; New FM Multiplex Receiver 400 (1)

FM Multiplex Receiver 400; Fisher Radio; New (ID = 2624111) Radio — Fisher Radio; New FM Multiplex Receiver 400 (1)

FM Multiplex Receiver 400; Fisher Radio; New (ID = 2624113) Radio — Fisher Radio; New FM Multiplex Receiver 400 (1)

FM Multiplex Receiver 400; Fisher Radio; New (ID = 150666) Radio — Fisher Radio; New FM Multiplex Receiver 400 (2)
aus ebay, mit Erlaubnis des Verkäufers em85

FM Multiplex Receiver 400; Fisher Radio; New (ID = 150667) Radio — Fisher Radio; New FM Multiplex Receiver 400 (2)

FM Multiplex Receiver 400; Fisher Radio; New (ID = 150668) Radio — Fisher Radio; New FM Multiplex Receiver 400 (2)

FM Multiplex Receiver 400; Fisher Radio; New (ID = 150669) Radio — Fisher Radio; New FM Multiplex Receiver 400 (2)

FM Multiplex Receiver 400; Fisher Radio; New (ID = 571605) Radio — Fisher Radio; New FM Multiplex Receiver 400 (1)

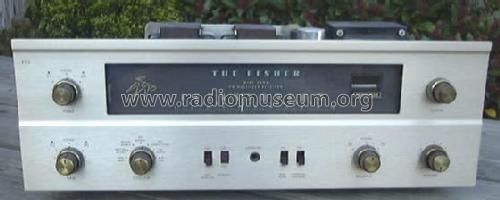

Fisher 400

FM Multiplex Receiver 400; Fisher Radio; New (ID = 688166) Radio — Fisher Radio; New FM Multiplex Receiver 400 (2)
aus ebay, Verkäufer greengirl613

FM Multiplex Receiver 400; Fisher Radio; New (ID = 747409) Radio — Fisher Radio; New FM Multiplex Receiver 400 (2)
aus ebay, Verkäufer oceanview_hi

FM Multiplex Receiver 400; Fisher Radio; New (ID = 747410) Radio — Fisher Radio; New FM Multiplex Receiver 400 (2)
aus ebay, Verkäufer oceanview_hi

FM Multiplex Receiver 400; Fisher Radio; New (ID = 752434) Radio — Fisher Radio; New FM Multiplex Receiver 400 (2)
aus ebay, Verkäufer mekons123

FM Multiplex Receiver 400; Fisher Radio; New (ID = 993005) Radio — Fisher Radio; New FM Multiplex Receiver 400 (2)

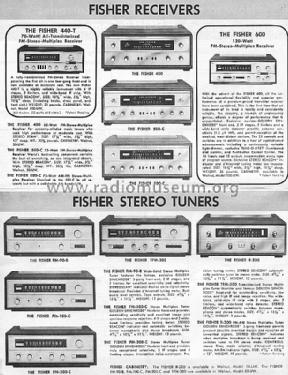

Fisher Catalog

FM Multiplex Receiver 400; Fisher Radio; New (ID = 1592643) Radio — Fisher Radio; New FM Multiplex Receiver 400 (2)
Elac Katalog - Fisher Sales Brochure

FM Multiplex Receiver 400; Fisher Radio; New (ID = 1629001) Radio — Fisher Radio; New FM Multiplex Receiver 400 (2)
Fisher Service Manual

FM Multiplex Receiver 400; Fisher Radio; New (ID = 1788156) Radio — Fisher Radio; New FM Multiplex Receiver 400 (2)
Sales Brochure 1963

FM Multiplex Receiver 400; Fisher Radio; New (ID = 3143149) Radio — Fisher Radio; New FM Multiplex Receiver 400 (2)
aus ebay, #126823072663, Verkäufer myostuff

FM Multiplex Receiver 400; Fisher Radio; New (ID = 3143150) Radio — Fisher Radio; New FM Multiplex Receiver 400 (2)
aus ebay, #126823072663, Verkäufer myostuff

FM Multiplex Receiver 400; Fisher Radio; New (ID = 3143151) Radio — Fisher Radio; New FM Multiplex Receiver 400 (2)
aus ebay, #126823072663, Verkäufer myostuff

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
20

Valves / Tubes
EC900 EC92 6BA6 EF94 EM84a ECC83 7868

Main principle
Superhet with RF-stage

Tuned circuits
11 FM circuit(s)

Wave bands
FM Broadcast Band Only

Power type and voltage
Alternating Current supply (AC) / 105-120; 220 Volt

Loudspeaker
- This model requires external speaker(s).

Material
Metal case

from Radiomuseum.org
Model: FM Multiplex Receiver 400 - Fisher Radio; New York NY

Shape
Chassis only or for «building in»

Dimensions (WHD)
445 x 146 x 380 mm / 17.5 x 5.7 x 15 inch

Notes
Röhren teilweise mehrfach vorhanden.
HiFi-Stereo-Tuner-Verstärker. Ausgangsleistung 2× 25 W (Sinus); Nußbaum-Gehäuse gegen Mehrpreis (120,- DM).
Vertrieb über ELAC.

Net weight (2.2 lb = 1 kg)
14 kg / 30 lb 13.4 oz (30.837 lb)

Price in first year of sale
1,790.00 DM

External source of data
erb

Source of data
Handbuch VDRG 1966/1967
