• Country
• United States of America (USA)

• Manufacturer / Brand
• Fluke, John, Mfg. Co. Inc.; Everett (WA)

• Year
• 1969

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 139233

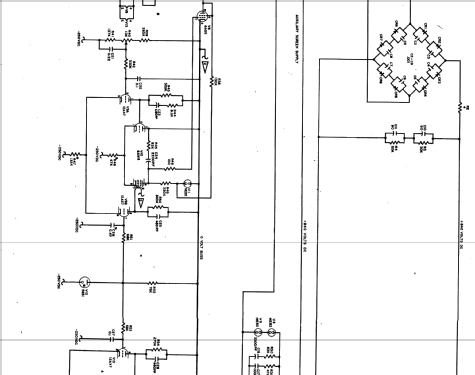

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes

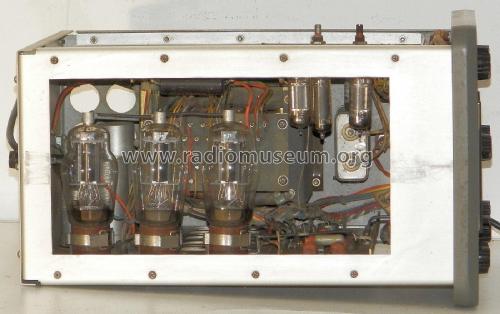

• 807 807 807 6AQ5 12AX7 12AX7 6AU8 6AU8 5651

• Number of Transistors
• 2

• Semiconductors

• Wave bands
• - without

• Details
• Power Supply (not only Batt.El.)

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Power Supply 407D - Fluke, John, Mfg. Co. Inc.;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 245 x 320 x 430 mm / 9.6 x 12.6 x 16.9 inch

• Notes
• Hochvoltnetzteil für Röhrenversuche, Ausgangsspannungen:
  0...555V (0...300mA)
  0...250V oder 25V (5mA)
  2 x 6,3V/5A
  2 transistors (2N1372, 2N301); 13 Diodes.

• Net weight (2.2 lb = 1 kg)
• 17 kg / 37 lb 7.1 oz (37.445 lb)

• Source of data
• - - Manufacturers Literature

• Author
• Model page created by Gerhard ROBERT. See "Data change" for further contributors.
