Opaal 285A

Opaal 285A; FNR Fabrique (ID = 1190792) Radio
Opaal 285A; FNR Fabrique (ID = 1018816) Radio Opaal 285A; FNR Fabrique (ID = 1018819) Radio
Opaal 285A; FNR Fabrique (ID = 1018818) Radio Opaal 285A; FNR Fabrique (ID = 1018817) Radio
Opaal 285A; FNR Fabrique (ID = 1018820) Radio
Use red slider bar for more.
Opaal 285A; FNR Fabrique (ID = 1018816) Radio

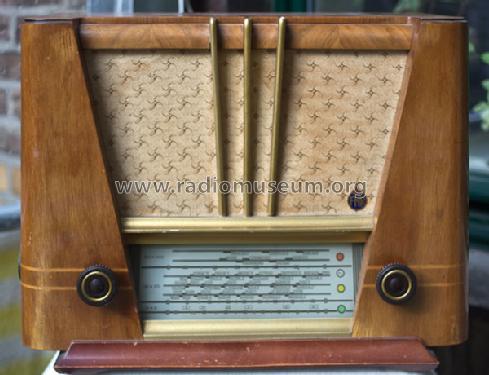

FNR Fabrique: Opaal 285A [Radio] ID = 1018816 600x460
Select picture or schematic to display from thumbnails on the right and click for download.
For model Opaal 285A, FNR Fabrique Nationale Radioélectrique / Nationale Radioelectrische Fabriek; Bruxelles / Brussel:
eigenes Gerät/Foto

Country:  Belgium
Manufacturer / Brand:  FNR Fabrique Nationale Radioélectrique / Nationale Radioelectrische Fabriek; Bruxelles / Brussel
Year: 1951/1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH42 6SG7 6SQ7 6V6 5Y3
Main principle Super-Heterodyne (Super in general); ZF/IF 484 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 cm = 7.1 inch
Power out 3.5 W (unknown quality)
from Radiomuseum.org Model: Opaal 285A - FNR Fabrique Nationale
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 460 x 350 x 250 mm / 18.1 x 13.8 x 9.8 inch
Notes See also model SBR 522A.
Price in first year of sale 315.00 FF

Model page created by Ralf Radermacher. See "Data change" for further contributors.



All listed radios etc. from FNR Fabrique Nationale Radioélectrique / Nationale Radioelectrische Fabriek; Bruxelles / Brussel
Here you find 54 models, 40 with images and 37 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
