Super FNR 177U

Super FNR 177U; FNR Fabrique (ID = 130611) Radio

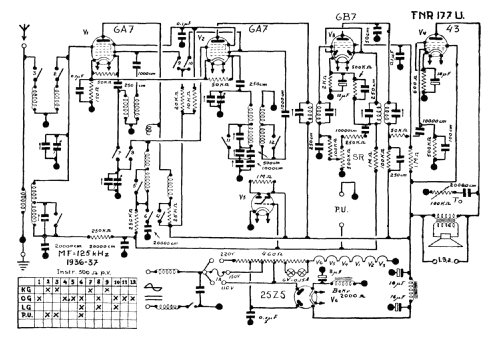

Super FNR 177U; FNR Fabrique (ID = 1462475) Radio
Super FNR 177U; FNR Fabrique (ID = 130610) Radio
Use red slider bar for more.
Super FNR 177U; FNR Fabrique (ID = 130610) Radio
FNR Fabrique: Super FNR 177U [Radio] ID = 130610 431x306
Select picture or schematic to display from thumbnails on the right and click for download.
For model Super FNR 177U, FNR Fabrique Nationale Radioélectrique / Nationale Radioelectrische Fabriek; Bruxelles / Brussel

Country:  Belgium
Manufacturer / Brand:  FNR Fabrique Nationale Radioélectrique / Nationale Radioelectrische Fabriek; Bruxelles / Brussel
Year: 1936/1937 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6A7 6A7 6B7 43 6E5 25Z5
Main principle Super-Heterodyne (Super in general); ZF/IF 125 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 110; 150; 220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Super FNR 177U - FNR Fabrique Nationale
Material Wooden case
Shape Tablemodel, low profile (big size).
Price in first year of sale 1'995.00 BFr
External source of data Catalogue officiel FNR, sans dates
Literature/Schematics (1) Le grand livre de la TSF (Doctsf Ref 6315)

Model page created by Bruno Brasseur. See "Data change" for further contributors.



All listed radios etc. from FNR Fabrique Nationale Radioélectrique / Nationale Radioelectrische Fabriek; Bruxelles / Brussel
Here you find 54 models, 40 with images and 37 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
