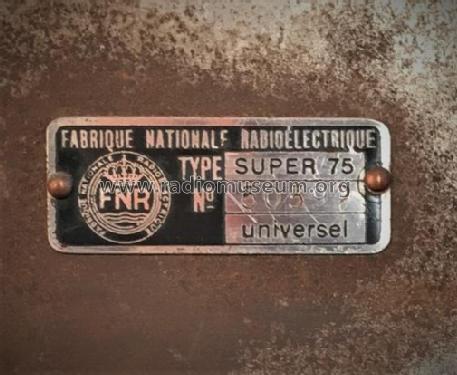

Super FNR 75U

Super FNR 75U; FNR Fabrique (ID = 130638) Radio

Super FNR 75U; FNR Fabrique (ID = 1453268) Radio
Super FNR 75U; FNR Fabrique (ID = 130636) Radio
Use red slider bar for more.
Super FNR 75U; FNR Fabrique (ID = 130636) Radio
FNR Fabrique: Super FNR 75U [Radio] ID = 130636 399x562
Select picture or schematic to display from thumbnails on the right and click for download.
For model Super FNR 75U, FNR Fabrique Nationale Radioélectrique / Nationale Radioelectrische Fabriek; Bruxelles / Brussel

Country:  Belgium
Manufacturer / Brand:  FNR Fabrique Nationale Radioélectrique / Nationale Radioelectrische Fabriek; Bruxelles / Brussel
Year: 1935/1936 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 78 6A7 6B7 43 25Z5
Main principle Superhet with RF-stage; ZF/IF 125 or 126 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage AC/DC-set / 110; 130; 220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: Super FNR 75U - FNR Fabrique Nationale
Material Wooden case
Notes

According to Brans, the IF frequency is 125 kHz.

Price in first year of sale 1'850.00 BFr
External source of data Catalogue officiel FNR, sans dates
Source of data -- Original-techn. papers.
Mentioned in "Radio Schakelingen" (J.G.R. van Dijck)
Literature/Schematics (1) Brans, P.H. Radio Schema's, Antwerpen (Deel 1, p. 103)

Model page created by Bruno Brasseur. See "Data change" for further contributors.
