Unknown

Unknown ; FNR Fabrique (ID = 438836) Radio Unknown ; FNR Fabrique (ID = 438837) Radio

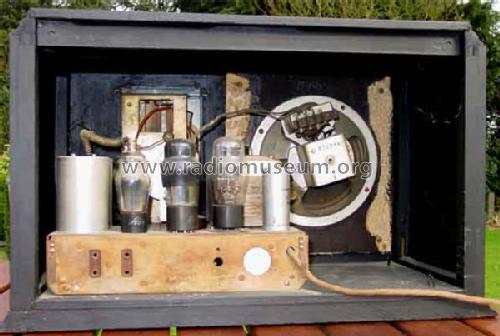

Unknown ; FNR Fabrique (ID = 438839) Radio Unknown ; FNR Fabrique (ID = 438838) Radio
Use red slider bar for more.
Unknown ; FNR Fabrique (ID = 438836) Radio
FNR Fabrique: Unknown [Radio] ID = 438836 600x405
Select picture or schematic to display from thumbnails on the right and click for download.
For model Unknown, FNR Fabrique Nationale Radioélectrique / Nationale Radioelectrische Fabriek; Bruxelles / Brussel

Country:  Belgium
Manufacturer / Brand:  FNR Fabrique Nationale Radioélectrique / Nationale Radioelectrische Fabriek; Bruxelles / Brussel
Year: 1936 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 6A7 6B7 42 80
Main principle Super-Heterodyne (Super in general); ZF/IF 485 kHz
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 130; 150; 220; 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 16 cm = 6.3 inch
Power out 2.7 W (unknown quality)
from Radiomuseum.org Model: Unknown - FNR Fabrique Nationale
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 500 x 320 x 250 mm / 19.7 x 12.6 x 9.8 inch
Net weight (2.2 lb = 1 kg) 11.5 kg / 25 lb 5.3 oz (25.33 lb)
Source of data - - Data from my own collection

Model page created by Jozef Brughmans †. See "Data change" for further contributors.



All listed radios etc. from FNR Fabrique Nationale Radioélectrique / Nationale Radioelectrische Fabriek; Bruxelles / Brussel
Here you find 54 models, 40 with images and 37 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
