Party Hit WG401

Party Hit WG401; Unitra FONICA, (ID = 314457) R-Player

Party Hit WG401; Unitra FONICA, (ID = 314458) R-Player

Party Hit WG401; Unitra FONICA, (ID = 314459) R-Player
Party Hit WG401; Unitra FONICA, (ID = 398600) R-Player Party Hit WG401; Unitra FONICA, (ID = 398602) R-Player
Party Hit WG401; Unitra FONICA, (ID = 398601) R-Player
Use red slider bar for more.

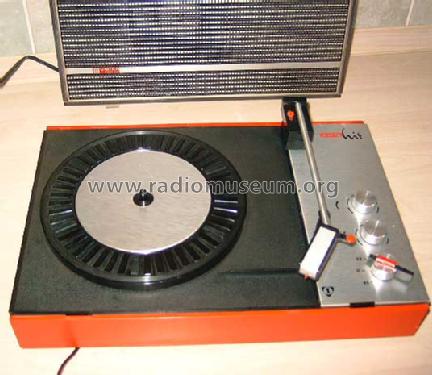

Party Hit WG401; Unitra FONICA, (ID = 398600) R-Player
Unitra FONICA,: Party Hit WG401 [R-Player] ID = 398600 536x465
Select picture or schematic to display from thumbnails on the right and click for download.
For model Party Hit WG401, Unitra FONICA, Łódźkie Zakłady Radiowe, Wytwórcze Aparatów Telefonicznych (T-4, Zwat); Łódź

Country:  Poland
Manufacturer / Brand:  Unitra FONICA, Łódźkie Zakłady Radiowe, Wytwórcze Aparatów Telefonicznych (T-4, Zwat); Łódź
Year: 1972–1976 ? Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 4:
Main principle Audio-Amplification
Details Rec.Player+Audio.Amp+LS
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 1.5 W (unknown quality)
from Radiomuseum.org Model: Party Hit WG401 - Unitra FONICA, Łódźkie Zakłady
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 350 x 115 x 240 mm / 13.8 x 4.5 x 9.4 inch
Notes

Transistors: BCP109, BC178, AC117, AC175. Ab 1973 mit BC148 und IC UL1402L.
Gedruckte Leiterplatte. 33/45 UpM. Mono-Wiedergabe mit einbautem Lautsprecher im Deckel, Ausgangsbuchse für Stereo-Signal unverstärkt. Licens Telefunken.

Lautsprecher: DEC 12 19 B - 4Ohm 3W

Net weight (2.2 lb = 1 kg) 2.8 kg / 6 lb 2.7 oz (6.167 lb)
Price in first year of sale 260.00 Mark
Mentioned in Geschichte der Fonoindustrie der DDR (B.4)
Literature/Schematics (1) -- Original-techn. papers. (Sortimentskatalog Elektroakustik (DDR, 1976))

Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
