• Country
• France

• Manufacturer / Brand
• Fornett, Buisson, Le Téléphone Pratique; Paris, Strasbourg, Romainville

• Year
• 1937/1938

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 72689

• Number of Tubes
• 5

• Valves / Tubes
• AK2 AF3 ABC1 AL4 EZ2

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 16 - Fornett, Buisson, Le Téléphone

• Shape
• Tablemodel, low profile (big size).

• Notes

• Toutes ondes de 18 à 2000 m. Contrôle de tonalité.

  Ébénisterie en palissandre verni.

• Net weight (2.2 lb = 1 kg)
• 9 kg / 19 lb 13.2 oz (19.824 lb)

• Literature/Schematics (1)

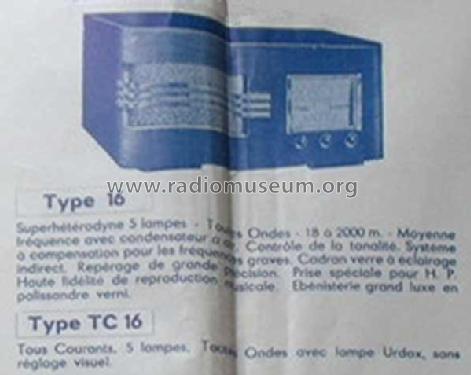

• -- Original prospect or advert (15.12.1937)

• Author
• Model page created by Patrice Zeissloff. See "Data change" for further contributors.

• Other Models

• Here you find 62 models, 60 with images and 3 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Fornett, Buisson, Le Téléphone Pratique; Paris, Strasbourg, Romainville
