Fostex B-16

Fostex B-16; Foster Electric Co. (ID = 1589067) R-Player Fostex B-16; Foster Electric Co. (ID = 1589068) R-Player
Use red slider bar for more.

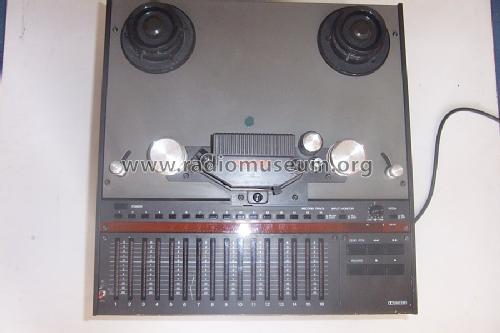

Fostex B-16; Foster Electric Co. (ID = 1589067) R-Player
Foster Electric Co.: Fostex B-16 [R-Player] ID = 1589067 900x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model Fostex B-16, Foster Electric Co. Ltd. (Fostex); Tokyo

Country:  Japan
Manufacturer / Brand:  Foster Electric Co. Ltd. (Fostex); Tokyo
alternative name

Fostex Company
Year: 1984 ?? Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 120; 220; 240 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Fostex B-16 - Foster Electric Co. Ltd.
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 440 x 450 x 310 mm / 17.3 x 17.7 x 12.2 inch
Notes

Track system: 16-track, 16-channel, stereo/monaural/multi channel system

Reel size: up to 10.5 inch reel
Equalization: IEC
Tape speeds: 15 ips
Wow and flutter: 0.06% (15 ips)
Frequency response: 40Hz to 18kHz (15 ips)
Signal to Noise Ratio: 80dB
Total harmonic distortion: 1%
Crosstalk: 55dB
Input: 300mV (line)
Output: 0.3V (line)

Power supply:

USA & Canadian model - 120V  60Hz
European model - 220V 50Hz
UK & Australian model - 240V 50Hz

Net weight (2.2 lb = 1 kg) 30.2 kg / 66 lb 8.3 oz (66.52 lb)

Model page created by Christian Berthier. See "Data change" for further contributors.
