Fostex Multitracker Recorder/Mixer model 160

Fostex Multitracker Recorder/Mixer model 160; Foster Electric Co. (ID = 2292833) Ampl/Mixer Fostex Multitracker Recorder/Mixer model 160; Foster Electric Co. (ID = 2292834) Ampl/Mixer
Fostex Multitracker Recorder/Mixer model 160; Foster Electric Co. (ID = 2292835) Ampl/Mixer Fostex Multitracker Recorder/Mixer model 160; Foster Electric Co. (ID = 2292836) Ampl/Mixer
Fostex Multitracker Recorder/Mixer model 160; Foster Electric Co. (ID = 2292837) Ampl/Mixer Fostex Multitracker Recorder/Mixer model 160; Foster Electric Co. (ID = 2292838) Ampl/Mixer
Use red slider bar for more.

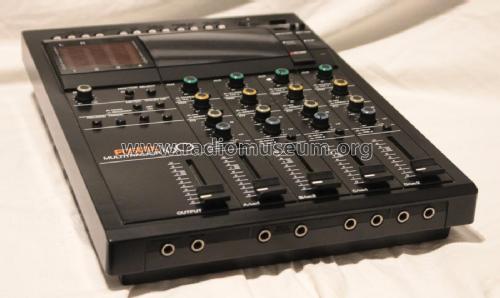

Fostex Multitracker Recorder/Mixer model 160; Foster Electric Co. (ID = 2292833) Ampl/Mixer
Foster Electric Co.: Fostex Multitracker Recorder/Mixer model 160 [Ampl/Mixer] ID = 2292833 1400x837
Select picture or schematic to display from thumbnails on the right and click for download.
For model Fostex Multitracker Recorder/Mixer model 160, Foster Electric Co. Ltd. (Fostex); Tokyo

Country:  Japan
Manufacturer / Brand:  Foster Electric Co. Ltd. (Fostex); Tokyo
alternative name

Fostex Company
Year: 1987 Category: Audio Amplifier or -mixer
Main principle Audio-Amplification
Wave bands - without
Details Cassette-Recorder or -Player
Power type and voltage Direct Current supply (DC) / 12-15 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Fostex Multitracker Recorder/Mixer model 160 - Foster Electric Co. Ltd.
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 295 x 80 x 390 mm / 11.6 x 3.1 x 15.4 inch
Notes

System - single cassette deck
Motors - DC Servo
Head - 1x4 channel erase (Ferrite) 1x4 channel record/play (Permalloy)
Normal speed - 3-3/4ips
Pitch control - +/-15% of normal speed
Recording time - 15 minutes for C-60 tape
Record track - 4 track, one direction (special format)
Record/Playback - 4 channels with Dolby NR-C (encode/decode switchable)
Wow and flutter - +/- 0.1% peak (IEC/ANSI weighted) measured with flutter test tape
Frequency Response -
  Mixer section - MIC-20Hz-18kHz
  Line - 20Hz-20kHz
  Recording section - 40Hz-14kHz at 0 VU
T.H.D. - 0.05% at 1kHz,  Recording section  2.0% at 1kHz, 0dB level
S/N - Mic- 75dB weighted, 73dB unweighted Line - 82dB weighted, 80dB unweighted
Crosstalk - Mixer section - 60dB at 1kHz, recording section - 40dB at 1kHz
Erasure - 70dB at 1kHz
Equaliser - 150kHz +/-15dB, 10kHz +/- 15dB



Supplied with a 120, 220 or 240 volt AC power adaptor.

Net weight (2.2 lb = 1 kg) 3.5 kg / 7 lb 11.3 oz (7.709 lb)
Mentioned in - - Manufacturers Literature (Owner's manual dated May 1987)
