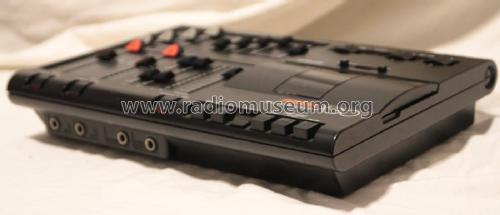

Fostex Multitracker X-30

Fostex Multitracker X-30; Foster Electric Co. (ID = 2309597) R-Player Fostex Multitracker X-30; Foster Electric Co. (ID = 2309598) R-Player
Fostex Multitracker X-30; Foster Electric Co. (ID = 2309599) R-Player Fostex Multitracker X-30; Foster Electric Co. (ID = 2309601) R-Player
Fostex Multitracker X-30; Foster Electric Co. (ID = 2309602) R-Player Fostex Multitracker X-30; Foster Electric Co. (ID = 2309603) R-Player
Fostex Multitracker X-30; Foster Electric Co. (ID = 2379596) R-Player Fostex Multitracker X-30; Foster Electric Co. (ID = 2379597) R-Player
Fostex Multitracker X-30; Foster Electric Co. (ID = 2379598) R-Player
Use red slider bar for more.
Fostex Multitracker X-30; Foster Electric Co. (ID = 2309597) R-Player
Foster Electric Co.: Fostex Multitracker X-30 [R-Player] ID = 2309597 1400x933
Select picture or schematic to display from thumbnails on the right and click for download.
For model Fostex Multitracker X-30, Foster Electric Co. Ltd. (Fostex); Tokyo

Country:  Japan
Manufacturer / Brand:  Foster Electric Co. Ltd. (Fostex); Tokyo
alternative name

Fostex Company
Year: 1987 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details Cassette-Recorder or -Player
Power type and voltage Direct Current supply (DC) / 11-15V Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Fostex Multitracker X-30 - Foster Electric Co. Ltd.
Material Modern plastics (no Bakelite or Catalin)
Shape Book-shelf unit.
Dimensions (WHD) 327 x 64 x 227 mm / 12.9 x 2.5 x 8.9 inch
Notes

Type: single compact cassette deck
Track System: 4-track, 4-channel - Records up to two channels at a time
Tape Speed: 4.8 cm/s (1⅞ ips)
Tape Type: CrO2
Noise Reduction: Dolby B, C
Frequency Response: 40Hz to 12.5kHz  (Cr02 tape)
Signal to Noise Ratio: 70dB  (Dolby C)
Wow and Flutter: 0.1%

Supplied with a Fostex AD-12 AC mains adaptor, 120VAC 60 Hz, 220/240 50Hz.

Net weight (2.2 lb = 1 kg) 2.3 kg / 5 lb 1.1 oz (5.066 lb)
Mentioned in - - Manufacturers Literature (Owners manual dated April 1987)

Model page created by Bartosz Szwed. See "Data change" for further contributors.



All listed radios etc. from Foster Electric Co. Ltd. (Fostex); Tokyo
Here you find 23 models, 22 with images and 2 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
