For model Fostex R 8, Foster Electric Co. Ltd. (Fostex); Tokyo

Country:  Japan
Manufacturer / Brand:  Foster Electric Co. Ltd. (Fostex); Tokyo
alternative name

Fostex Company
Year: 1989 ?? Category: Sound/Video Recorder and/or Player
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Fostex R 8 - Foster Electric Co. Ltd.
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 328 x 316 x 173 mm / 12.9 x 12.4 x 6.8 inch
Notes

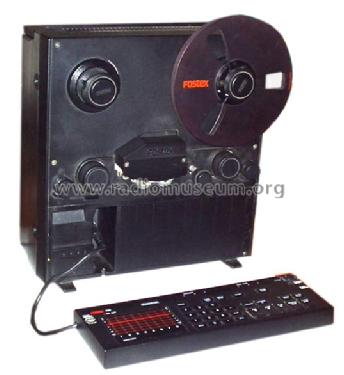

Fostex R 8 is an 8 Track analog Recorder/Reproducer. 8 channel record, 8 channel reproduce, overdubbing, Dolby, 7 inch reels, 1/4" wide 1 mil base tape, 15"/sec.
European version for 220 V AC. There is also a USA/Canada version for 120 V AC, and a UK/Australian version for 240 V AC.

Detachable control panel.

Track system: 8-track, 8-channel system

Heads: 1 x record/playback, 1 x erase

Motor: 1 x capstan, 2 x reel, 1 x loading

Reel size: up to 7 inch reel 1/4

Equalization: IEC-1

Tape speeds: 15 ips

Wow and flutter: 0.08% (15 ips)

Frequency response: 45Hz to 18kHz (15 ips)

Signal to Noise Ratio: 78dB

Total harmonic distortion: 1%

Input: 300mV (line)

Output: 0.3V (line)

Net weight (2.2 lb = 1 kg) 10 kg / 22 lb 0.4 oz (22.026 lb)
Source of data -- Original-techn. papers.
Literature/Schematics (1) -- Collector info (Sammler)

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
