High Compliance Woofer FW-202 8 ohms

Foster Electric Co. Ltd. (Fostex); Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1967 ??
  • Category
  • Loudspeaker, headphone or earphone
  • Radiomuseum.org ID
  • 362969
    • alternative name: Fostex Company

 Technical Specifications

  • Wave bands
  • - without
  • Power type and voltage
  • No Power needed
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: High Compliance Woofer FW-202 [8 ohms] - Foster Electric Co. Ltd.
  • Dimensions (WHD)
  • 208 x 208 x 90.8 mm / 8.2 x 8.2 x 3.6 inch
  • Notes

  • Specifications

    Size: 200 mm (8")
    Impedance: 8 or 16 Ω at 400 Hz
    Resonant Frequency: 30 - 40 Hz
    Frequency Range: 2000 Hz
    Sensitivity: 98 dB
    Power: 45 W max., 15 W nominal
    Dimensions: 208 x 208 mm, 90.8 mm depth
    Magnet Weight: 830 g (1-13/16 lbs), Ceramic
    Weight: 2760 g (6-1/16 lbs)

    Price (Australia) $23.64, plus sales tax $4.93

    See also 16 Ω version

  • Net weight (2.2 lb = 1 kg)
  • 2.760 kg / 6 lb 1.3 oz (6.079 lb)
  • Mentioned in

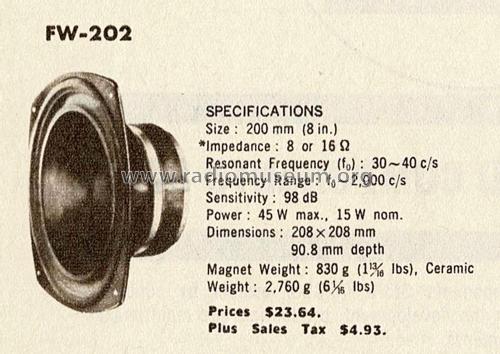

  • -- Original prospect or advert (Electronics Australia, Nov. 1967, Page 150.)
  • Author
  • Model page created by Martin Kent. See "Data change" for further contributors.
