Recorder/Mixer Model 250

Recorder/Mixer Model 250; Foster Electric Co. (ID = 2283635) Ampl/Mixer Recorder/Mixer Model 250; Foster Electric Co. (ID = 2283637) Ampl/Mixer

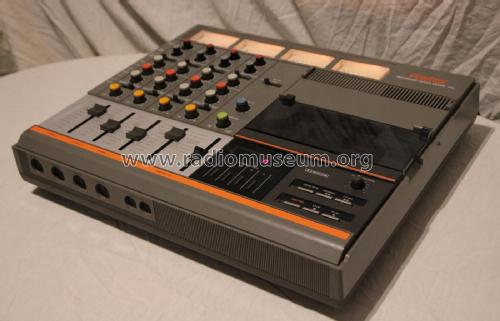

Recorder/Mixer Model 250; Foster Electric Co. (ID = 2283633) Ampl/Mixer Recorder/Mixer Model 250; Foster Electric Co. (ID = 2283634) Ampl/Mixer
Recorder/Mixer Model 250; Foster Electric Co. (ID = 2283636) Ampl/Mixer Recorder/Mixer Model 250; Foster Electric Co. (ID = 2283638) Ampl/Mixer
Recorder/Mixer Model 250; Foster Electric Co. (ID = 2283639) Ampl/Mixer Recorder/Mixer Model 250; Foster Electric Co. (ID = 2283640) Ampl/Mixer
Recorder/Mixer Model 250; Foster Electric Co. (ID = 2283641) Ampl/Mixer
Use red slider bar for more.
Recorder/Mixer Model 250; Foster Electric Co. (ID = 2283635) Ampl/Mixer
Foster Electric Co.: Recorder/Mixer Model 250 [Ampl/Mixer] ID = 2283635 1400x942
Select picture or schematic to display from thumbnails on the right and click for download.
For model Recorder/Mixer Model 250, Foster Electric Co. Ltd. (Fostex); Tokyo

Country:  Japan
Manufacturer / Brand:  Foster Electric Co. Ltd. (Fostex); Tokyo
alternative name

Fostex Company
Year: 1982 Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details Cassette-Recorder or -Player
Power type and voltage Alternating Current supply (AC) / 120; 240 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Recorder/Mixer Model 250 - Foster Electric Co. Ltd.
Material Plastics (no bakelite or catalin)
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 430 x 80 x 355 mm / 16.9 x 3.1 x 14 inch
Notes

Type: 2-head, single compact cassette deck
Track System: 4-track, 4-channel
Tape Speed: 9.5 cm/s
Heads: 1 x 4T record/playback, 1 x 4T erase
Motor: 1 x capstan, 1 x reel
Tape Type: CrO2
Noise Reduction:
Frequency Response: 40Hz to 14kHz  (Cr02 tape)
Signal to Noise Ratio: 75dB  (dolby C) - switch at the bottom of unit
Total Harmonic Distortion: 1.5%

Power supply: Main Transformer have pins for connecting 120V or 240V power source (soldering required).

Net weight (2.2 lb = 1 kg) 8.5 kg / 18 lb 11.6 oz (18.722 lb)
Mentioned in Funkschau (16/1982, S. 41, 42 / Gebrauchstest)

Model page created by Bartosz Szwed. See "Data change" for further contributors.
