• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Fountain Electronic Industries Ltd.; Auckland

• Year
• 1968 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 360745

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• EF89 ECH81 EF89 EBC81 EM84 EL84

• Number of Transistors

• Semiconductors
• BY127

• Main principle
• Superhet with RF-stage; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 50Hz, 230 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org

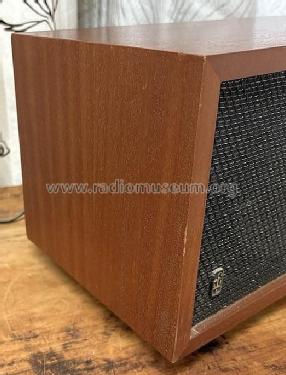

• Model: Flairline Mk II - Fountain Electronic Industries

• Shape
• Tablemodel, with any shape - general.

• Notes

• Fountain Flairline Mk II (2)

  Broadcast, 6-valve, mains operated. Features include tuned RF stage, separate bass and treble controls, large 6x9L elliptical Rola speaker, magic eye tuning. Provision for pick-up and extension speaker.

  See also Fountain Flairline Mk1.

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.

• Other Models

• Here you find 15 models, 14 with images and 5 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Fountain Electronic Industries Ltd.; Auckland
