FE15

FE15 ; Freed-Eisemann Radio (ID = 218350) Radio
FE15 ; Freed-Eisemann Radio (ID = 634944) Radio FE15 ; Freed-Eisemann Radio (ID = 150846) Radio
FE15 ; Freed-Eisemann Radio (ID = 150847) Radio FE15 ; Freed-Eisemann Radio (ID = 150848) Radio
FE15 ; Freed-Eisemann Radio (ID = 329872) Radio FE15 ; Freed-Eisemann Radio (ID = 741263) Radio
FE15 ; Freed-Eisemann Radio (ID = 741266) Radio FE15 ; Freed-Eisemann Radio (ID = 741267) Radio
FE15 ; Freed-Eisemann Radio (ID = 1523444) Radio FE15 ; Freed-Eisemann Radio (ID = 1523445) Radio
Use red slider bar for more.
FE15 ; Freed-Eisemann Radio (ID = 634944) Radio
Freed-Eisemann Radio: FE15 [Radio] ID = 634944 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model FE15, Freed-Eisemann Radio Corporation; New York (Brooklyn), NY

Country:  United States of America (USA)
Manufacturer / Brand:  Freed-Eisemann Radio Corporation; New York (Brooklyn), NY
Year: 1925 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5:
Main principle TRF (Tuned-Radio-Frequency but use of regeneration unknown); Neutrodyne
Tuned circuits 3 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: FE15 - Freed-Eisemann Radio
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Dimensions (WHD) 19 x 9.5 x 9.5 inch / 483 x 241 x 241 mm
Notes Three dials (primary tuning control knobs)
Price in first year of sale 75.00 $
Collectors' prices
External source of data Ernst Erb
Source of data Radio Collector`s Guide 1921-1932

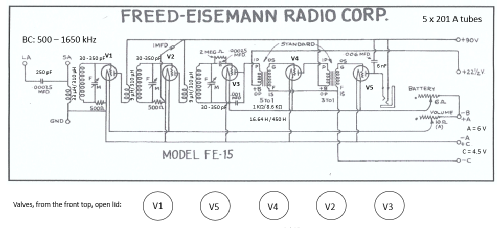

Circuit diagram reference Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)
Mentioned in Collector's Guide to Antique Radios 4. Edition
Literature/Schematics (1) Radio Manufacturers of the 1920's, Vol. 2
