• Country
• United States of America (USA)

• Manufacturer / Brand
• Freshman Co. Inc., Chas.., (Polydyne); New York

• Year
• 1927

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 41097

• • Brand: C.A.Earl

• Number of Tubes
• 7

• Valves / Tubes
• UX226 UX226 UX226 UY227 UX226 UX171 UX280

• Main principle
• TRF (Tuned-Radio-Frequency but use of regeneration unknown); 2 AF stage(s)

• Tuned circuits
• 4 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / switch: 110; 120 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Equaphase G10 - Freshman Co. Inc., Chas..,

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 31 x 36 x 15 inch / 787 x 914 x 381 mm

• Notes

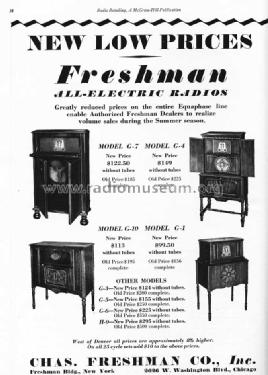

• Equaphase is featured in an add in "Radio Niews" October 1927 from Chas. Freshman Co., Inc, Freshman Building, New York, page 312. All four models came with four tuned circuits; single drive - one control; full floating tube shelf; drum type illuminated dial - calibrated in wavelengths; solid mahagony cabinet - artisitically highlighted.

  The Freshman model Equaphase F1 is the cheapest of this family (battery operated table model for $ 70 without speaker), followed by G7 ($ 185), G10 (Low Boy for $ 195), and G4 ($ 225).

  The Equaphase models G include the model G-60-S power supply unit with one or two filter chokes but the same name.Tubes named UC-226, UX-226, UX-226, UY-227, UX-226, UX-171 and UX-280 - or CX-3.. types. Rider is showing them on page Freshman 1-2 to 1-3 and the battery version together with the Masterpiece on 1-1. Model G10 has a Lift top, fold-down front. The Freshman Equaphase G10 has an external power supply. This mans that the set alone has 6 tubes only. We describe it including the power supply.

• Price in first year of sale
• 195.00 $

• External source of data
• Ernst Erb

• Source of data
• Radio Collector`s Guide 1921-1932

• Circuit diagram reference
• Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)

• Mentioned in
• Collector's Guide to Antique Radios (7th Edition)
