8 Transistor TRL-862

8 Transistor TRL-862; Fuji Denki Seizo K.K (ID = 2278687) Radio 8 Transistor TRL-862; Fuji Denki Seizo K.K (ID = 2278691) Radio
8 Transistor TRL-862; Fuji Denki Seizo K.K (ID = 2278694) Radio 8 Transistor TRL-862; Fuji Denki Seizo K.K (ID = 2278693) Radio
8 Transistor TRL-862; Fuji Denki Seizo K.K (ID = 2278696) Radio 8 Transistor TRL-862; Fuji Denki Seizo K.K (ID = 2279396) Radio
8 Transistor TRL-862; Fuji Denki Seizo K.K (ID = 2278689) Radio 8 Transistor TRL-862; Fuji Denki Seizo K.K (ID = 2278690) Radio
8 Transistor TRL-862; Fuji Denki Seizo K.K (ID = 2278688) Radio 8 Transistor TRL-862; Fuji Denki Seizo K.K (ID = 2278697) Radio
Use red slider bar for more.

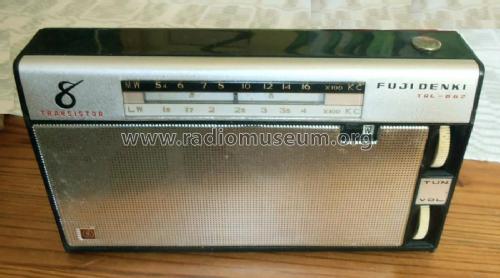

8 Transistor TRL-862; Fuji Denki Seizo K.K (ID = 2278687) Radio
Fuji Denki Seizo K.K: 8 Transistor TRL-862 [Radio] ID = 2278687 1400x781
Select picture or schematic to display from thumbnails on the right and click for download.
For model 8 Transistor TRL-862, Fuji Denki Seizo K.K., Japan

Country:  Japan
Manufacturer / Brand:  Fuji Denki Seizo K.K., Japan
Year: 1962 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8: 2SA88 or. 2SA30 2SA188 or. 2SA112 2SA31 2SA31 2SB60 or. 2SB32 2SB60 or. 2SB32 2SB60A or. 2SB33 2SB60A or. 2SB33
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / AA: 4 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch
Power out 0.07 W (0.15 W max.)
from Radiomuseum.org Model: 8 Transistor TRL-862 - Fuji Denki Seizo K.K., Japan
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 167 x 94 x 39 mm / 6.6 x 3.7 x 1.5 inch
Notes

Earphones jack, model in ebony color & suitable brown leather case known.

Net weight (2.2 lb = 1 kg) 0.423 kg / 0 lb 14.9 oz (0.932 lb)
Documents regarding this model
  Technical specifications 358 KB

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
