TRF1200

TRF1200; Fuji Denki Seizo K.K (ID = 2334838) Radio
TRF1200; Fuji Denki Seizo K.K (ID = 2334834) Radio TRF1200; Fuji Denki Seizo K.K (ID = 2334835) Radio
TRF1200; Fuji Denki Seizo K.K (ID = 2334836) Radio TRF1200; Fuji Denki Seizo K.K (ID = 2334837) Radio
Use red slider bar for more.
TRF1200; Fuji Denki Seizo K.K (ID = 2334834) Radio
Fuji Denki Seizo K.K: TRF1200 [Radio] ID = 2334834 1400x878

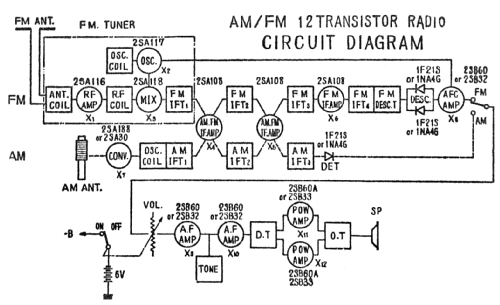

Select picture or schematic to display from thumbnails on the right and click for download.
For model TRF1200, Fuji Denki Seizo K.K., Japan

Country:  Japan
Manufacturer / Brand:  Fuji Denki Seizo K.K., Japan
Year: 1964 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 12: 2SA116 2SA117 2SA118 2SA188 2SA108 2SA108 2SA108 2SB60 2SB60 2SB60 2SB60A 2SB60A
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz; 3 AF stage(s)
Tuned circuits 5 AM circuit(s)     8 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Dry Batteries / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.7 cm = 3 inch
Power out 0.4 W (unknown quality)
from Radiomuseum.org Model: TRF1200 - Fuji Denki Seizo K.K., Japan
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 220 x 125 x 65 mm / 8.7 x 4.9 x 2.6 inch
Notes

Eingebaute AFC, 2 Teleskopantennen.

Net weight (2.2 lb = 1 kg) 0.980 kg / 2 lb 2.5 oz (2.159 lb)

Model page created by Wolfgang Lill. See "Data change" for further contributors.
