TRS-701

TRS-701; Fuji Denki Seizo K.K (ID = 411207) Radio TRS-701; Fuji Denki Seizo K.K (ID = 1476255) Radio
Use red slider bar for more.

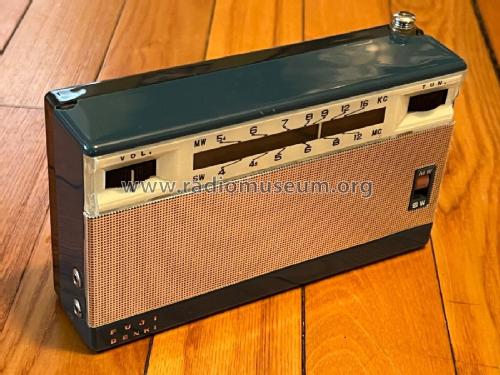

TRS-701; Fuji Denki Seizo K.K (ID = 411207) Radio
Fuji Denki Seizo K.K: TRS-701 [Radio] ID = 411207 298x244
Select picture or schematic to display from thumbnails on the right and click for download.
For model TRS-701, Fuji Denki Seizo K.K., Japan

Country:  Japan
Manufacturer / Brand:  Fuji Denki Seizo K.K., Japan
Year: 1962 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: TRS-701 - Fuji Denki Seizo K.K., Japan
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 582 Folder 7 6-1962)

Model page created by a member from A. See "Data change" for further contributors.
