Fuji Denki Seizo K.K: 8 Transistor TRS-861 [Radio] ID = 2283897 900x685

Select picture or schematic to display from thumbnails on the right and click for download.

For model 8 Transistor TRS-861, Fuji Denki Seizo K.K., Japan:
Quelle: Ebay photo. Thanks for technical assistance Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:

Japan

Manufacturer / Brand:

Fuji Denki Seizo K.K., Japan

Year: 1962 ?

Category: Broadcast Receiver - or past WW2 Tuner

Semiconductors (the count is only for transistors)

8: 2SA189 2SA111 2SA112 or. 2SA31 2SA31 2SB60 or. 2SB32 2SB60 or. 2SB32 2SB60A or. 2SB33 2SB60A or. 2SB33

Main principle

Superheterodyne (common); ZF/IF 455 kHz

Wave bands

Broadcast and Short Wave (SW).

Details

Power type and voltage

Dry Batteries / AA: 4 × 1,5 Volt

Loudspeaker

Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch

Power out

0.07 W (0.15 W max.)

from Radiomuseum.org

Model: 8 Transistor TRS-861 - Fuji Denki Seizo K.K., Japan

Material

Plastics (no bakelite or catalin)

Shape

Portable set > 8 inch (also usable without mains)

Dimensions (WHD)

167 x 94 x 39 mm / 6.6 x 3.7 x 1.5 inch

Notes

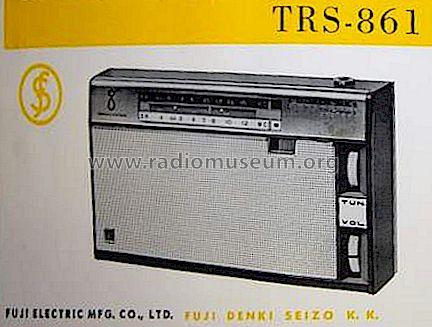

Fuji Denki TRS-861, Transistor Portable Radio;
SW: ~4.0 - 12.0 MHz, earphones jack, model in ebony color & suitable brown leather case known.

Net weight (2.2 lb = 1 kg)

0.423 kg / 0 lb 14.9 oz (0.932 lb)

Source of data

-- Collector info (Sammler)

Documents regarding this model

Data sheet for Vol. 8, No. 5, 1962

358 KB

Model page created by a member from A. See "Data change" for further contributors.
