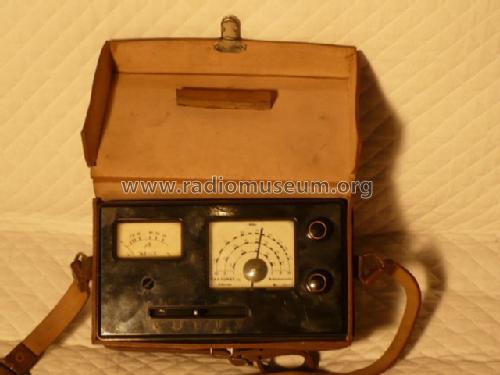

For model Antennenorter, Funke, Max, Weida/Thür. (Ostd.) (D) später Adenau

Country:  Germany
Manufacturer / Brand:  Funke, Max, Weida/Thür. (Ostd.) (D) später Adenau
alternative name

Prüfgerätewerk Weida, VEB || WETRON Weida, VEB; Weida, ;(Ostd.) (D) ex Funke
Brand
Bittorf & Funke
Year: 1953 Category: Service- or Lab Equipment
Valves / Tubes 1: DC90
Main principle TRF with diode detector
Tuned circuits 1 AM circuit(s)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Antennenorter - Funke, Max, Weida/Thür. Ostd.
Shape Portable set > 8 inch (also usable without mains)
Notes 47-230 MHz in 3 Bereichen; Kopfhörer Anschluss; Anzeigeinstrument für alle Signale > 3 µV, Pendelschaltung.
Net weight (2.2 lb = 1 kg) 1.9 kg / 4 lb 3 oz (4.185 lb)
Mentioned in Funk-Technik (FT) (2. Novemberheft Nr. 22/1953 S 703)
