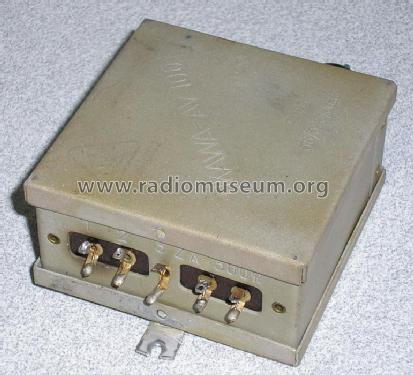

UKW-Antennenverstärker UKAWA - AV 100

UKW-Antennenverstärker UKAWA - AV 100; Funkwerkstätten (ID = 208241) RF-Ampl.
UKW-Antennenverstärker UKAWA - AV 100; Funkwerkstätten (ID = 200133) RF-Ampl. UKW-Antennenverstärker UKAWA - AV 100; Funkwerkstätten (ID = 200135) RF-Ampl.
UKW-Antennenverstärker UKAWA - AV 100; Funkwerkstätten (ID = 200136) RF-Ampl. UKW-Antennenverstärker UKAWA - AV 100; Funkwerkstätten (ID = 1024936) RF-Ampl.
UKW-Antennenverstärker UKAWA - AV 100; Funkwerkstätten (ID = 1369489) RF-Ampl. UKW-Antennenverstärker UKAWA - AV 100; Funkwerkstätten (ID = 1883145) RF-Ampl.
UKW-Antennenverstärker UKAWA - AV 100; Funkwerkstätten (ID = 1883146) RF-Ampl. UKW-Antennenverstärker UKAWA - AV 100; Funkwerkstätten (ID = 2025152) RF-Ampl.
Use red slider bar for more.
UKW-Antennenverstärker UKAWA - AV 100; Funkwerkstätten (ID = 200133) RF-Ampl.
Funkwerkstätten: UKW-Antennenverstärker UKAWA - AV 100 [RF-Ampl.] ID = 200133 741x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model UKW-Antennenverstärker UKAWA - AV 100, Funkwerkstätten Bernburg, PGH; Bernburg/Saale (Ostd.)

Country:  Germany
Manufacturer / Brand:  Funkwerkstätten Bernburg, PGH; Bernburg/Saale (Ostd.)
alternative name

Bernburg Funkw. A. Ulrich
Brand
Radio Jäckel
Year: 1955 ? Category: RF (Radio Frequency-) Amplifier
Valves / Tubes 1: ECC81
Main principle Radio Frequency Amplification only
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Powered by external power supply or a main unit. / DC 200; AC 6 Volt
Loudspeaker
Power out
from Radiomuseum.org Model: UKW-Antennenverstärker UKAWA - AV 100 - Funkwerkstätten Bernburg, PGH;
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 80 x 80 x 45 mm / 3.1 x 3.1 x 1.8 inch
Notes Antennenverstärker für 87...100 MHz. Ein-/Ausgang: 300 Ohm/symmetrisch.
Net weight (2.2 lb = 1 kg) 0.1 kg / 0 lb 3.5 oz (0.22 lb)
Source of data - - Data from my own collection

Model page created by Andreas Hamel. See "Data change" for further contributors.



All listed radios etc. from Funkwerkstätten Bernburg, PGH; Bernburg/Saale (Ostd.)
Here you find 39 models, 30 with images and 22 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
