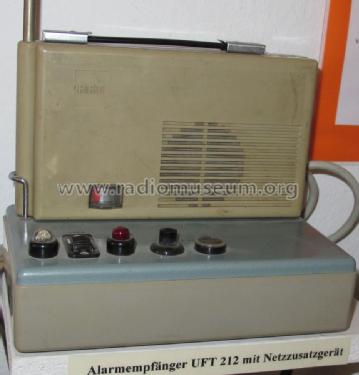

Alarmempfänger UFT212 1355.4F3 33,412 MHz

Alarmempfänger UFT212 1355.4F3; Funkwerk Dresden, (ID = 455337) Commercial Re Alarmempfänger UFT212 1355.4F3; Funkwerk Dresden, (ID = 455338) Commercial Re
Alarmempfänger UFT212 1355.4F3; Funkwerk Dresden, (ID = 455339) Commercial Re Alarmempfänger UFT212 1355.4F3; Funkwerk Dresden, (ID = 455340) Commercial Re
Alarmempfänger UFT212 1355.4F3; Funkwerk Dresden, (ID = 1374957) Commercial Re Alarmempfänger UFT212 1355.4F3; Funkwerk Dresden, (ID = 1375134) Commercial Re
Alarmempfänger UFT212 1355.4F3; Funkwerk Dresden, (ID = 1375589) Commercial Re Alarmempfänger UFT212 1355.4F3; Funkwerk Dresden, (ID = 1565524) Commercial Re
Alarmempfänger UFT212 1355.4F3; Funkwerk Dresden, (ID = 1565525) Commercial Re
Use red slider bar for more.
Alarmempfänger UFT212 1355.4F3; Funkwerk Dresden, (ID = 455337) Commercial Re
Funkwerk Dresden,: Alarmempfänger UFT212 1355.4F3 [Commercial Re] ID = 455337 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Alarmempfänger UFT212 1355.4F3 33,412 MHz, Funkwerk Dresden, VEB, RFT (Ostd. vorm. H. Mende & Co.)

Country:  Germany
Manufacturer / Brand:  Funkwerk Dresden, VEB, RFT (Ostd. vorm. H. Mende & Co.)
Year: 1968 ?? Category: Commercial Receiver (may include amateur bands)
Semiconductors (the count is only for transistors) Semiconductors present.
schematic requested
Main principle Superheterodyne (common)
Wave bands Short Wave (SW only)
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Alarmempfänger UFT212 1355.4F3 [33,412 MHz] - Funkwerk Dresden, VEB, RFT
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 185 x 105 x 35 mm / 7.3 x 4.1 x 1.4 inch
Notes Alarmempfänger für stille Alarmauslösung mit Alarmanzeige Melderelais weiß, Gerät besteht aus zwei Baugruppen: a) Empfänger b) Ladegerät mit Alarmanzeige. Einsatzgebiete: Feuerwehr,Krankenhaus, Polizei der DDR
Net weight (2.2 lb = 1 kg) 1 kg / 2 lb 3.2 oz (2.203 lb)
Source of data -- Collector info (Sammler)

Model page created by a member from A. See "Data change" for further contributors.



All listed radios etc. from Funkwerk Dresden, VEB, RFT (Ostd. vorm. H. Mende & Co.)
Here you find 103 models, 90 with images and 69 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
