Frequenzzeiger FZ1 6X5

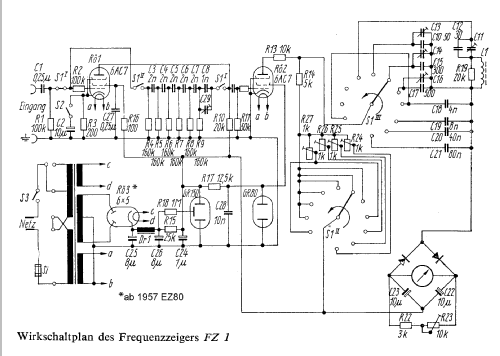

Frequenzzeiger FZ1; Funkwerk Dresden, (ID = 844531) Equipment

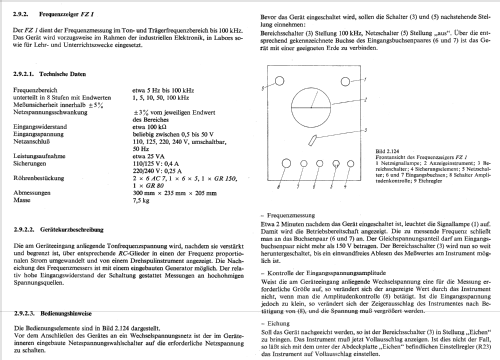

Frequenzzeiger FZ1; Funkwerk Dresden, (ID = 844536) Equipment
Use red slider bar for more.
Frequenzzeiger FZ1; Funkwerk Dresden, (ID = 844531) Equipment
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Germany
Manufacturer / Brand:  Funkwerk Dresden, VEB, RFT (Ostd. vorm. H. Mende & Co.)
Year: 1954 ? Category: Service- or Lab Equipment
Valves / Tubes 3: 6AC7 6AC7 6X5 GR150 GR80
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 220; 240 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Frequenzzeiger FZ1 [6X5] - Funkwerk Dresden, VEB, RFT
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 300 x 235 x 205 mm / 11.8 x 9.3 x 8.1 inch
Notes Frequenzbereich 5 Hz bis 100 kHz in 8 Messbereichen. - Vorgänger des FZ1-2, ab 1956/57 mit EZ80 und GR22-267, aber gleicher Schaltung.
Net weight (2.2 lb = 1 kg) 7.5 kg / 16 lb 8.3 oz (16.52 lb)
Mentioned in Anders; Schaltungssammlung der Meßgeräte; DDR 1979

Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
