Orienta W301

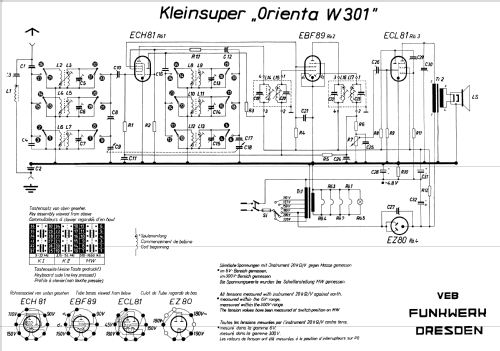

Orienta W301; Funkwerk Dresden, (ID = 313956) Radio

Orienta W301; Funkwerk Dresden, (ID = 313928) Radio
Orienta W301; Funkwerk Dresden, (ID = 22028) Radio Orienta W301; Funkwerk Dresden, (ID = 37641) Radio
Orienta W301; Funkwerk Dresden, (ID = 37642) Radio Orienta W301; Funkwerk Dresden, (ID = 84500) Radio

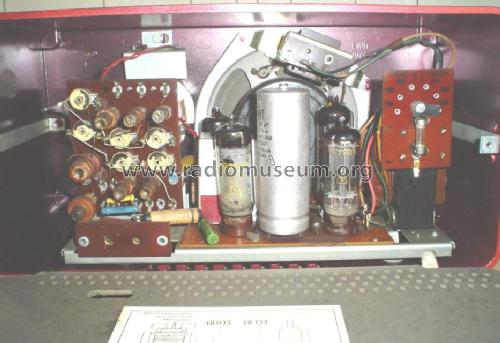

Orienta W301; Funkwerk Dresden, (ID = 84501) Radio Orienta W301; Funkwerk Dresden, (ID = 84502) Radio
Orienta W301; Funkwerk Dresden, (ID = 91434) Radio
Use red slider bar for more.

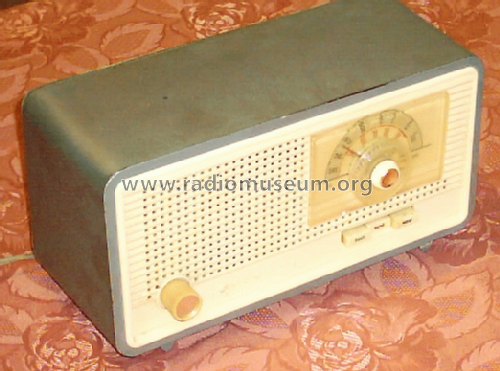

Orienta W301; Funkwerk Dresden, (ID = 22028) Radio
Funkwerk Dresden,: Orienta W301 [Radio] ID = 22028 522x388
Select picture or schematic to display from thumbnails on the right and click for download.
For model Orienta W301, Funkwerk Dresden, VEB, RFT (Ostd. vorm. H. Mende & Co.)

Country:  Germany
Manufacturer / Brand:  Funkwerk Dresden, VEB, RFT (Ostd. vorm. H. Mende & Co.)
Year: 1960/1961 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH81 EBF89 ECL81 EZ80
Main principle Superheterodyne (common); ZF/IF 473 kHz; Export model
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 150; 180; 200; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Orienta W301 - Funkwerk Dresden, VEB, RFT
Material Bakelite case
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 300 x 155 x 140 mm / 11.8 x 6.1 x 5.5 inch
Notes

Exportgerät, ähnlich Stern-Radio Orienta 492 aus Sonneberg.

Net weight (2.2 lb = 1 kg) 2.5 kg / 5 lb 8.1 oz (5.507 lb)
Price in first year of sale 200.00 DM
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Mentioned in -- Original prospect or advert
