• Year
  • 1952
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 88450

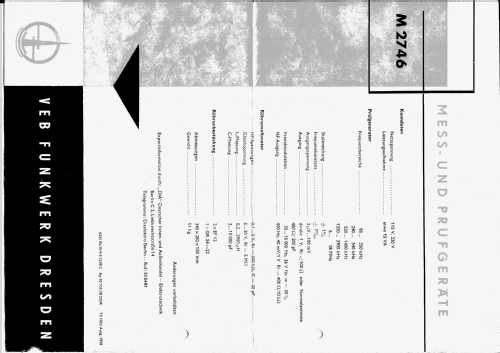

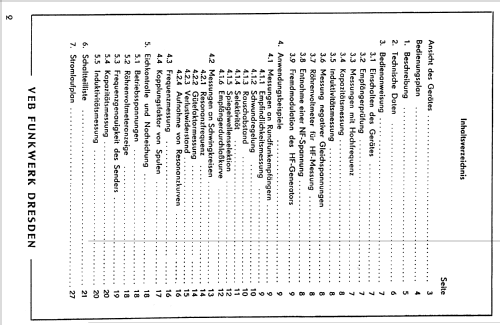

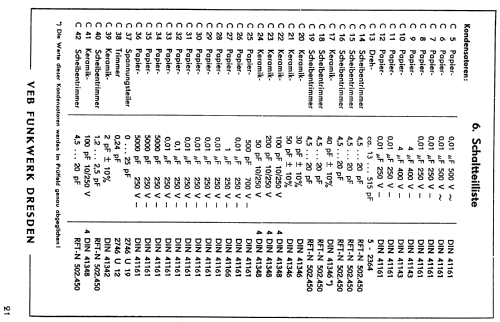

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 2
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Alternating Current supply (AC) / 115/220 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org

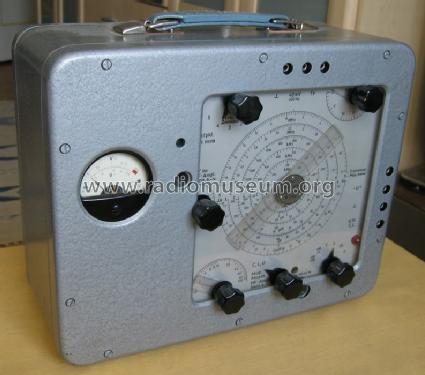

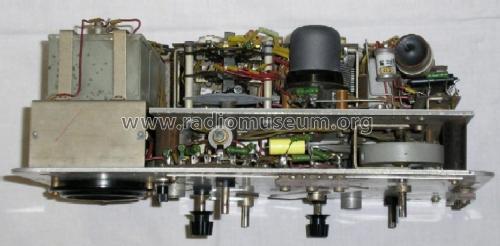

  • Model: Prüfgenerator M2746 - Funkwerk Dresden, VEB, RFT
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 345 x 282 x 150 mm / 13.6 x 11.1 x 5.9 inch
  • Notes
  • Frequenzbereich 95 kHz-18 MHz in 6 Bereichen mit AM-Modulation (eigen und fremd). Weitere Messmöglichkeiten: Induktivität, Kapazität, einfaches Röhrenvoltmeter. - Im Funkwerk Leipzig entwickelt, 1952 nach Dresden verlagert.
  • Net weight (2.2 lb = 1 kg)
  • 10.5 kg / 23 lb 2 oz (23.128 lb)
  • Mentioned in
  • Anders; Schaltungssammlung der Meßgeräte; DDR 1979
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Andreas Hamel. See "Data change" for further contributors.
