• Year
  • 1955
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 88619

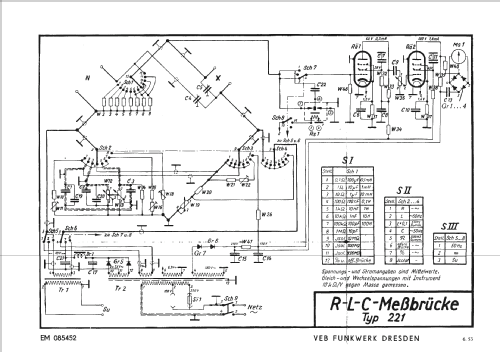

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 2
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 110/220 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: RLC-Messbrücke 221 - Funkwerk Dresden, VEB, RFT
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 340 x 230 x 170 mm / 13.4 x 9.1 x 6.7 inch
  • Notes

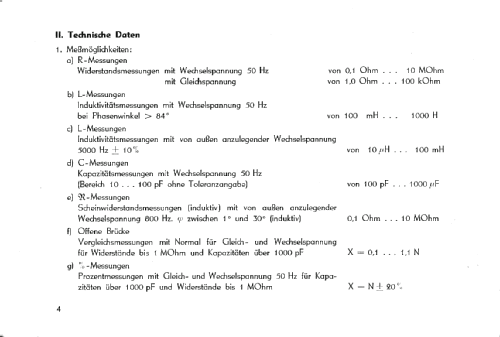

  • Meßbrücke mit 8 Meßbereichen für R, L, C (0,1 Ohm bis 1 MOhm; 10 pF bis 100 µF; 0,01 mH bis 100 H), 4 Meßbereiche für Iso-Widerstand (1 MOhm bis 1000 MOhm).
    Vorgänger-Version wurde unter gleicher Typenbezeichnung im Funkwerk Erfurt gebaut, siehe ID = 126821.
  • Net weight (2.2 lb = 1 kg)
  • 5.8 kg / 12 lb 12.4 oz (12.775 lb)
  • Price in first year of sale
  • 968.00 DM
  • Author
  • Model page created by Andreas Hamel. See "Data change" for further contributors.

 Collections | Museums | Literature

Collections

The model RLC-Messbrücke is part of the collections of the following members.

 Forum

Forum contributions about this model: Funkwerk Dresden,: RLC-Messbrücke 221

Threads: 1 | Posts: 1

RLC 221 - Kofferradio Ilona

hallo,

ich habe lange gesucht für die Sammlung - nun habe ich 2 davon RLC 221. Eines davon möchte ich für einen weiteren Wunsch für die Sammlung einsetzen - suche im Tausch Kofferradio "Ilona" in grün.

Also: biete "RLC 221" suche Kofferradio "Ilona" in grün. Foto der Messbrücke an.

Grüße Peter Faulstich

Attachments

Peter Faulstich, 21.Nov.14

Weitere Posts (1) zu diesem Thema.
